Visualize Druid Metrics with Grafana Dashboard

KubeDB exposes Druid metrics through a JMX Exporter running as a Java agent inside each Druid container. Once Prometheus scrapes those metrics, you can visualize them in Grafana using pre-built KubeDB dashboards. This tutorial walks through the full setup: deploying the monitoring stack, enabling monitoring on a Druid instance, and importing the Grafana dashboards.

Before You Begin

• You need a Kubernetes cluster with kubectl configured. If you do not already have a cluster, you can create one by using kind.

• KubeDB must be installed in your cluster with kubedb-metrics enabled. Follow the setup guide here and make sure to include the flag below during installation:

  --set kubedb-metrics.enabled=true


  kubedb-metrics creates MetricsConfiguration objects for each database type, which Panopticon (Step 2) uses to expose metrics to Prometheus.

• Druid requires a deep storage backend and ZooKeeper. The example below uses S3-compatible deep storage with a pre-created secret.

• To keep monitoring resources isolated, we use a separate monitoring namespace and deploy the database in the demo namespace.

  $ kubectl create ns monitoring
  namespace/monitoring created

  $ kubectl create ns demo
  namespace/demo created


Note: YAML files used in this tutorial are stored in docs/examples/druid/monitoring folder in GitHub repository kubedb/docs.

Configuration

These two steps — deploying kube-prometheus-stack and installing Panopticon — are shared prerequisites for all KubeDB database monitoring guides. If you have already completed them in another guide, skip to Step 1.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector label that Prometheus uses to pick up ServiceMonitor objects. You will need this label when enabling monitoring on the Druid instance.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

The label is release: prometheus.

Step 2: Install Panopticon

Panopticon is the Appscode operator that reads MetricsConfiguration objects created by kubedb-metrics and exposes them to Prometheus. It must be installed before enabling kubedb-metrics.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Setup

Get External Dependencies Ready

Deep Storage

One of the external dependency of Druid is deep storage where the segments are stored. It is a storage mechanism that Apache Druid does not provide. Amazon S3, Google Cloud Storage, or Azure Blob Storage, S3-compatible storage (like Minio), or HDFS are generally convenient options for deep storage.

In this tutorial, we will run a minio-server as deep storage in our local kind cluster using minio-operator and create a bucket named druid in it, which the deployed druid database will use.

$ helm repo add minio https://operator.min.io/
$ helm repo update minio
$ helm upgrade --install --namespace "minio-operator" --create-namespace "minio-operator" minio/operator --set operator.replicaCount=1

$ helm upgrade --install --namespace "demo" --create-namespace druid-minio minio/tenant \
--set tenant.pools[0].servers=1 \
--set tenant.pools[0].volumesPerServer=1 \
--set tenant.pools[0].size=1Gi \
--set tenant.certificate.requestAutoCert=false \
--set tenant.buckets[0].name="druid" \
--set tenant.pools[0].name="default"

Now we need to create a Secret named deep-storage-config. It contains the necessary connection information using which the druid database will connect to the deep storage.

apiVersion: v1
kind: Secret
metadata:
  name: deep-storage-config
  namespace: demo
stringData:
  druid.storage.type: "s3"
  druid.storage.bucket: "druid"
  druid.storage.baseKey: "druid/segments"
  druid.s3.accessKey: "minio"
  druid.s3.secretKey: "minio123"
  druid.s3.protocol: "http"
  druid.s3.enablePathStyleAccess: "true"
  druid.s3.endpoint.signingRegion: "us-east-1"
  druid.s3.endpoint.url: "http://myminio-hl.demo.svc.cluster.local:9000/"

Let’s create the deep-storage-config Secret shown above:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/druid/quickstart/deep-storage-config.yaml
secret/deep-storage-config created

Below is the Druid object with monitoring configured to use Prometheus Operator.

apiVersion: kubedb.com/v1alpha2
kind: Druid
metadata:
  name: druid-grafana-demo
  namespace: alert-druid
spec:
  version: 36.0.0
  deepStorage:
    type: s3
    configSecret:
      name: deep-storage-config
  topology:
    routers:
      replicas: 1
  deletionPolicy: WipeOut
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor for this instance.
• monitor.prometheus.serviceMonitor.labels must match the serviceMonitorSelector label of your Prometheus (release: prometheus).
• monitor.prometheus.serviceMonitor.interval sets the scrape interval to 10 seconds.

Create the Druid instance:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/druid/monitoring/druid-grafana-demo.yaml
druid.kubedb.com/druid-grafana-demo created

Wait for it to be Ready:

$ kubectl get druid -n demo druid-grafana-demo
NAME                 VERSION   STATUS   AGE
druid-grafana-demo   36.0.0    Ready    5m

KubeDB creates a stats service named {druid-name}-stats for monitoring:

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=druid-grafana-demo"
NAME                       TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
druid-grafana-demo         ClusterIP   10.96.10.1     <none>        8888/TCP    5m
druid-grafana-demo-stats   ClusterIP   10.96.10.2     <none>        9101/TCP    5m

KubeDB also creates a ServiceMonitor in the demo namespace:

$ kubectl get servicemonitor -n demo
NAME                       AGE
druid-grafana-demo-stats   5m

Verify it carries the correct label:

$ kubectl get servicemonitor -n demo druid-grafana-demo-stats -o jsonpath='{.metadata.labels}'
{"release":"prometheus", ...}

Step 2: Verify Prometheus is Scraping

Port-forward the Prometheus pod:

$ kubectl port-forward -n monitoring \
  prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090

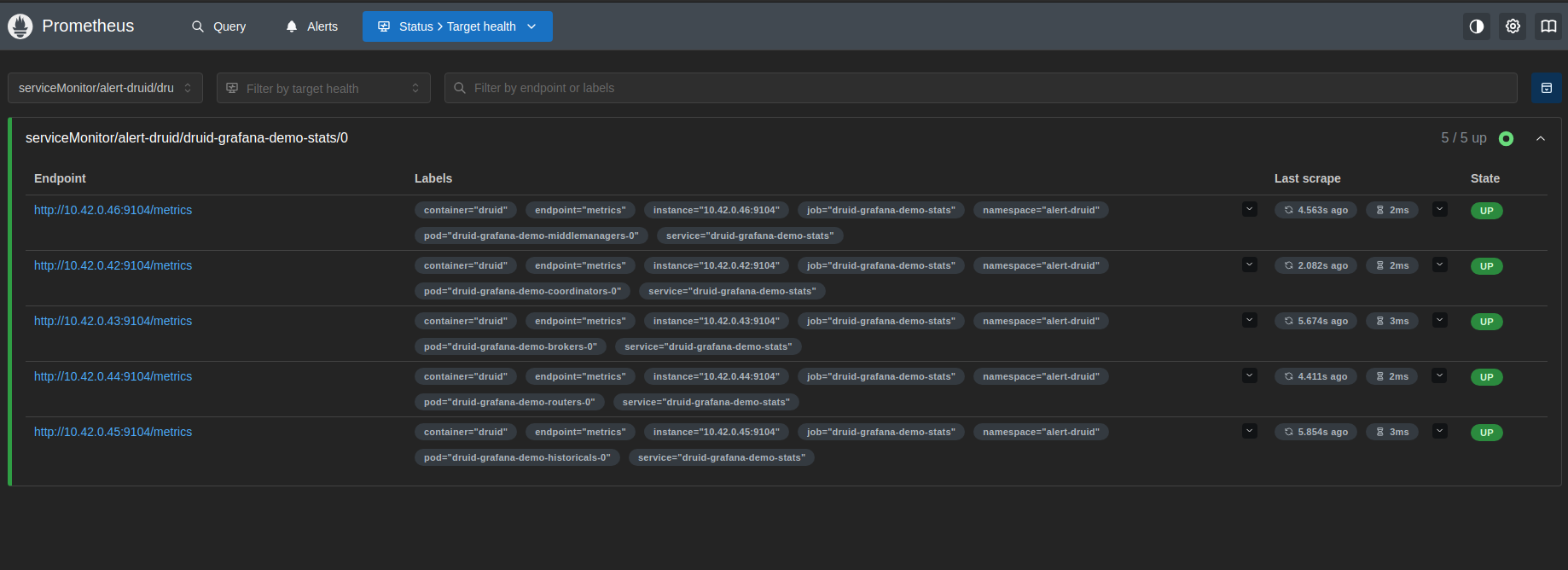

Open http://localhost:9090/targets in your browser. Look for an entry whose service label matches druid-grafana-demo-stats. Its state should be UP.

If the target is missing, check that the ServiceMonitor label (release: prometheus) matches the Prometheus serviceMonitorSelector.

Step 3: Access Grafana

Port-forward the Grafana service:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80
Forwarding from 127.0.0.1:3000 -> 3000
Forwarding from [::1]:3000 -> 3000

Open http://localhost:3000. The username is admin. Retrieve the auto-generated password from the secret:

$ kubectl get secret -n monitoring prometheus-grafana \
  -o jsonpath='{.data.admin-password}' | base64 -d

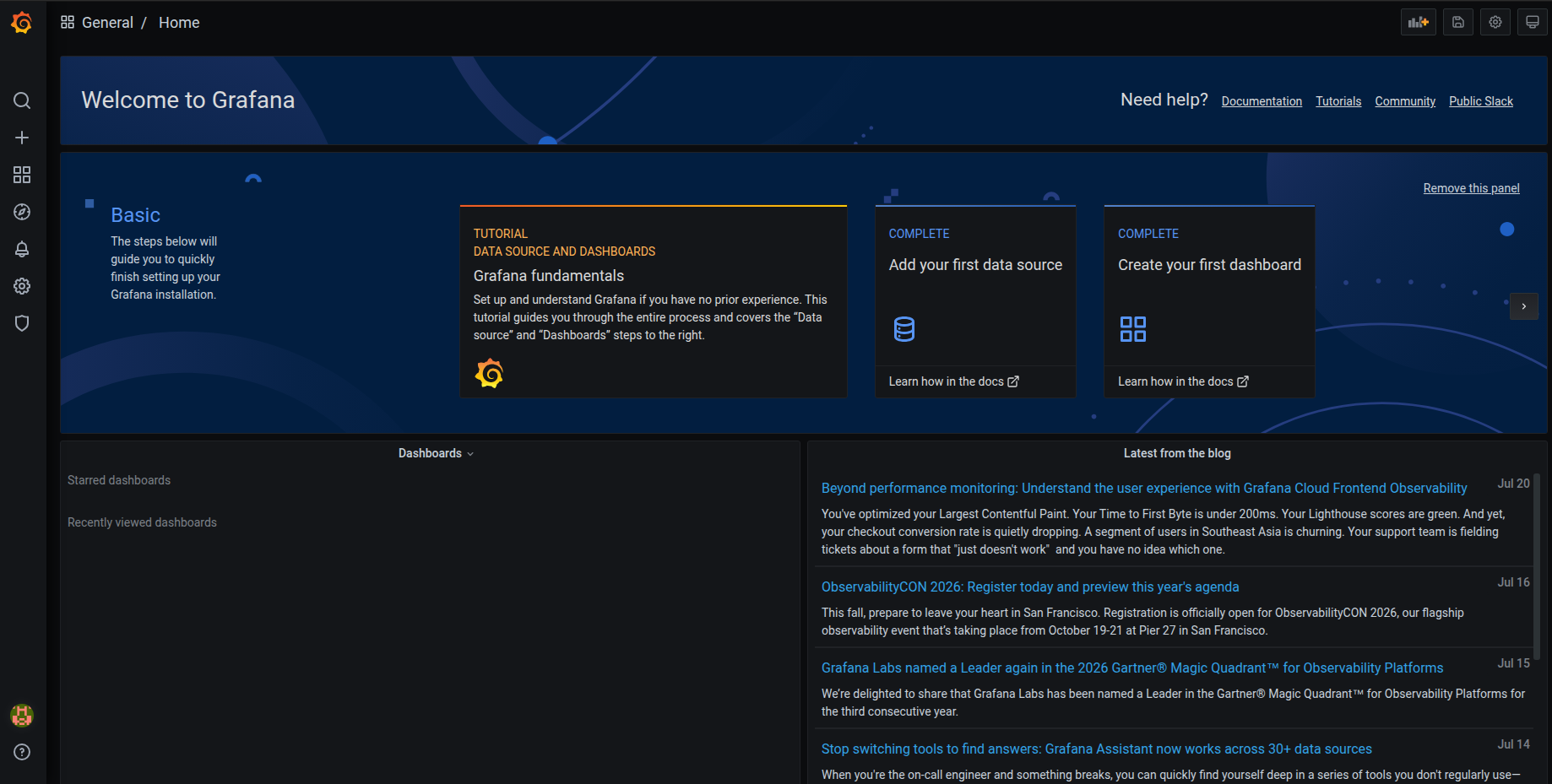

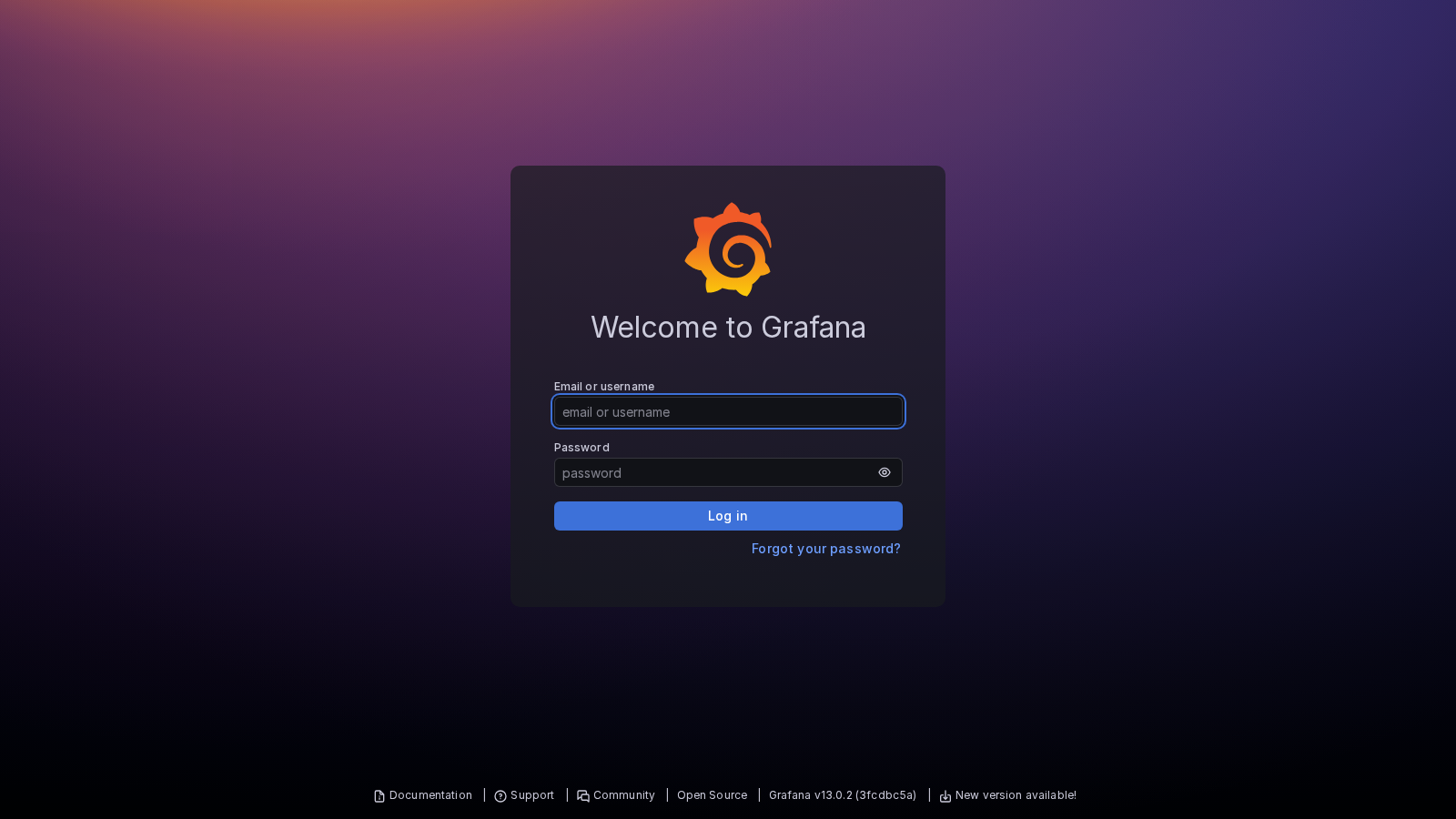

After a successful login you will see the Grafana home page:

Step 4: Configure Prometheus as a Data Source

If you installed Grafana via kube-prometheus-stack, Prometheus is already configured as the default data source — skip to Step 5.

For a standalone Grafana installation:

1. Go to Connections → Data sources → Add new data source.

2. Select Prometheus.

3. Set the URL to your Prometheus service:

   http://prometheus-operated.monitoring.svc:9090


4. Click Save & test. You should see Data source is working.

Step 5: Import KubeDB Druid Dashboard

The KubeDB Druid dashboards are distributed as JSON files. Each JSON file is a complete dashboard definition — panels, queries, variables, and layout — that Grafana loads in one shot. Without importing, you would have to build every panel and write every PromQL query by hand. Importing lets you skip that entirely.

Three dashboards are available. Download all three JSON files from the appscode/grafana-dashboards repository (druid/ folder):

Import steps (repeat for each of the three files):

1. In Grafana, click the + icon in the left sidebar.
2. Select Import from the menu.
3. Click Upload JSON file and select one of the downloaded .json files.
4. In the Prometheus dropdown that appears, select your Prometheus data source.
5. Click Import.

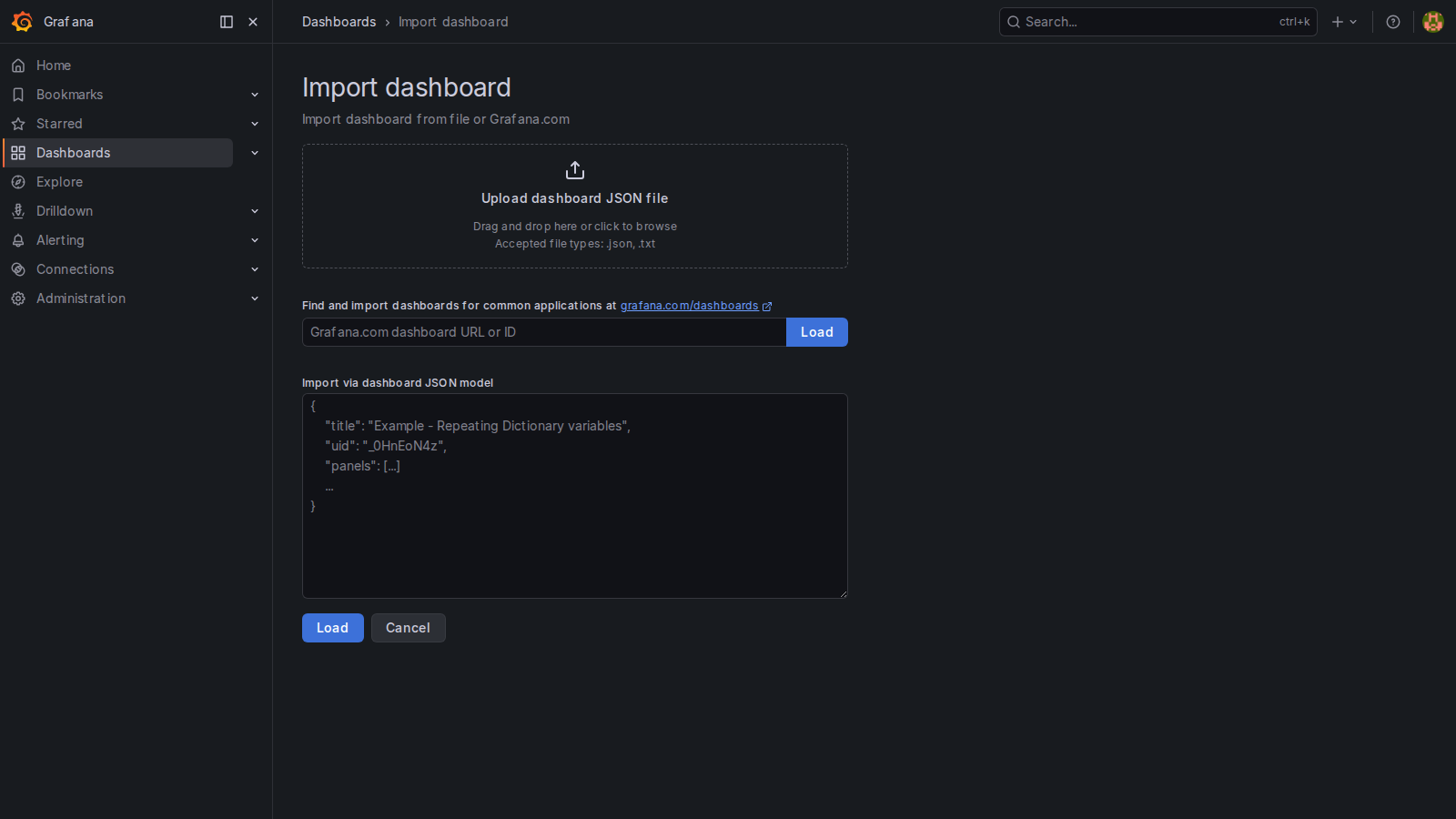

The import page looks like this — click Upload dashboard JSON file to select the file:

After importing all three files, they will appear under Dashboards in the left sidebar.

Step 6: Explore the Dashboard

After opening a dashboard, use the dropdown filters at the top to focus on a specific instance. Note that the Summary dashboard labels its filters Namespace and Druid, while the Pod and Database dashboards use lowercase namespace and app — they select the same thing.

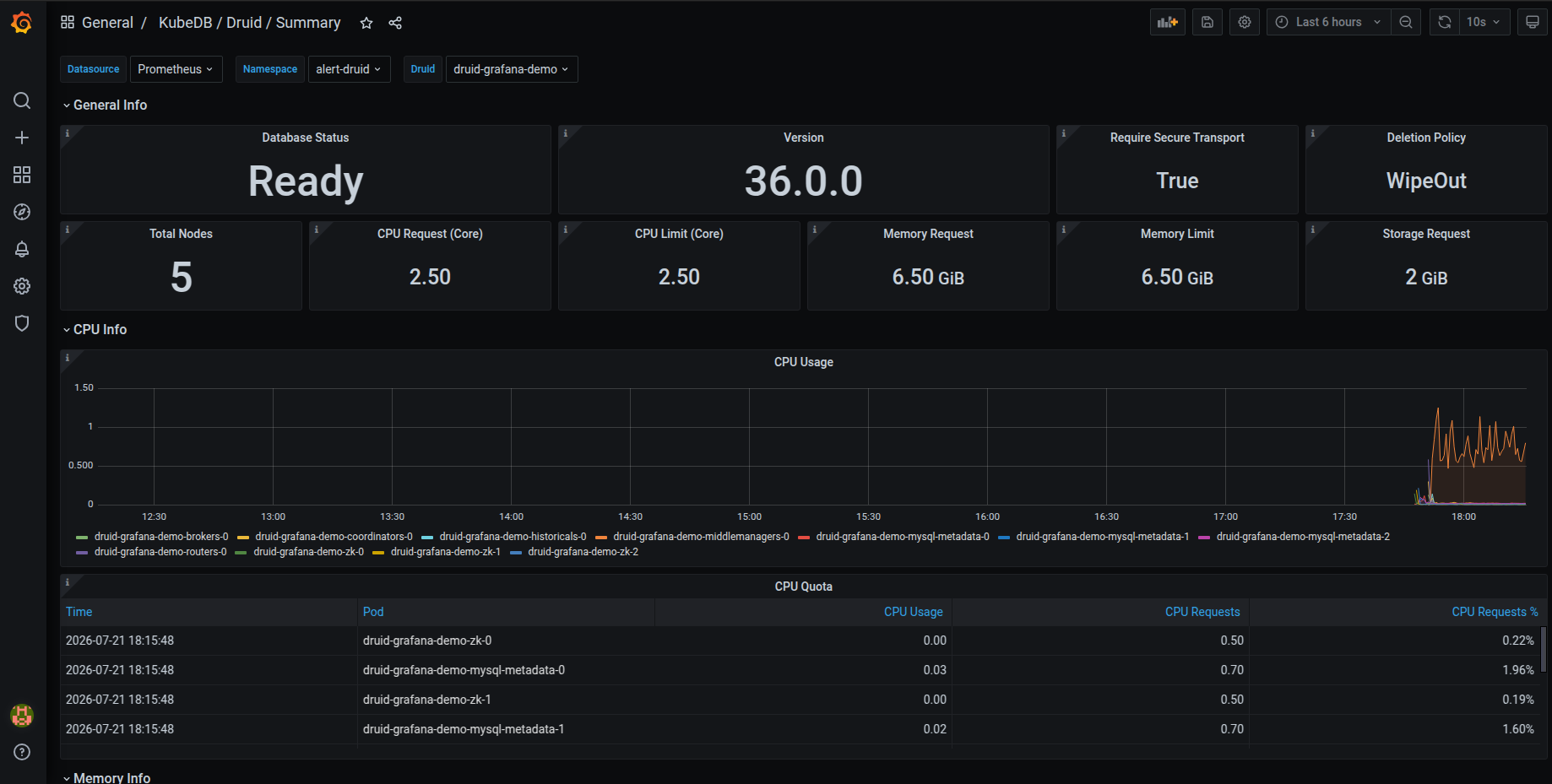

KubeDB / Druid / Summary — start here for a cluster-level overview:

• General Info — database status, version, secure-transport flag, termination policy, total node count, and aggregate CPU/memory/storage requests and limits
• CPU Info — a CPU usage graph broken down per pod, plus a CPU Quota table showing usage vs. requests (and % of request) for each pod

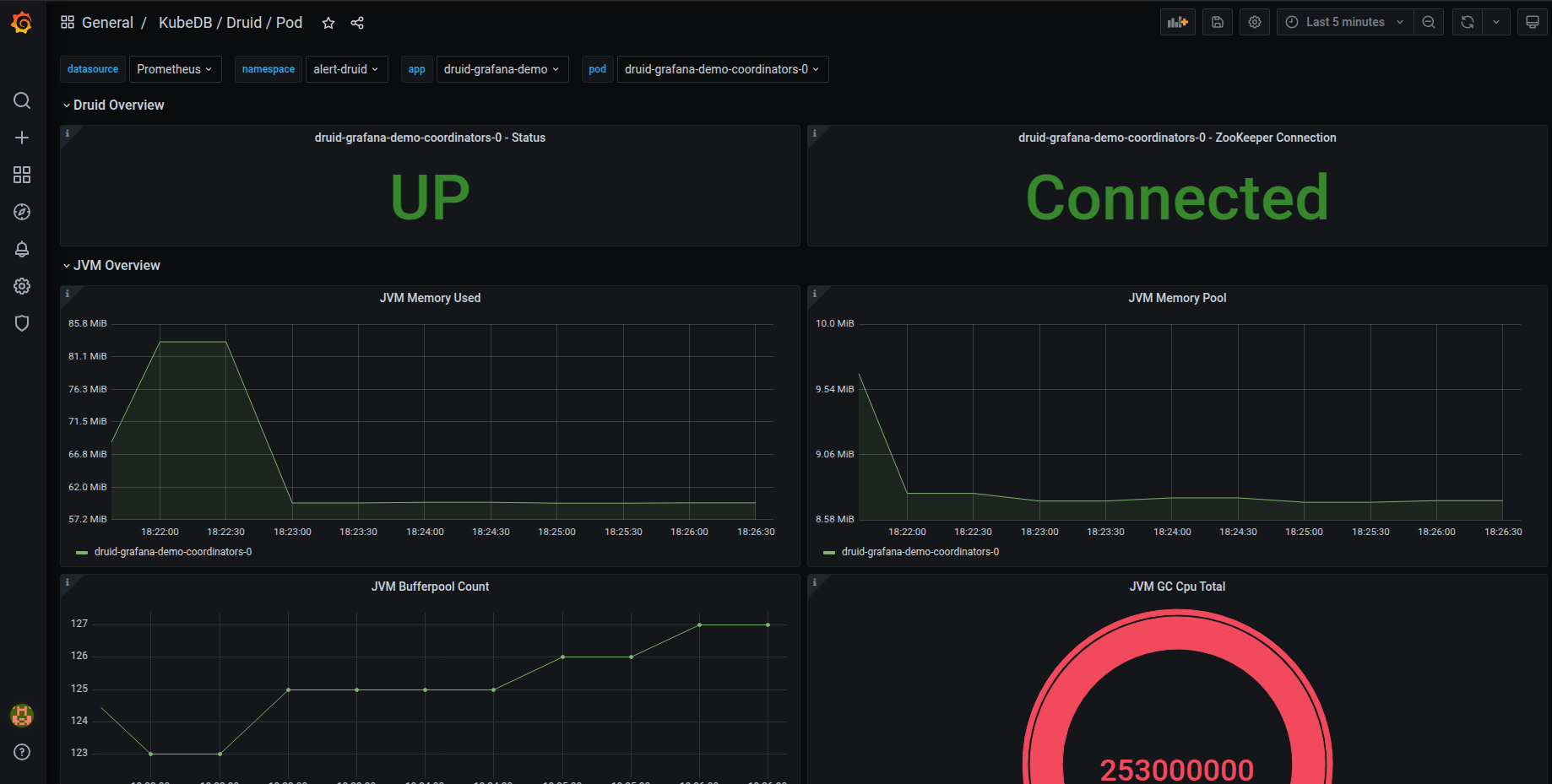

KubeDB / Druid / Pod — drill into a specific Druid node (selected via the pod filter):

• Druid Overview — node status (UP/DOWN) and ZooKeeper connection state for the selected pod
• JVM Overview — JVM memory used, JVM memory pool, JVM bufferpool count, and JVM GC CPU time for the selected pod

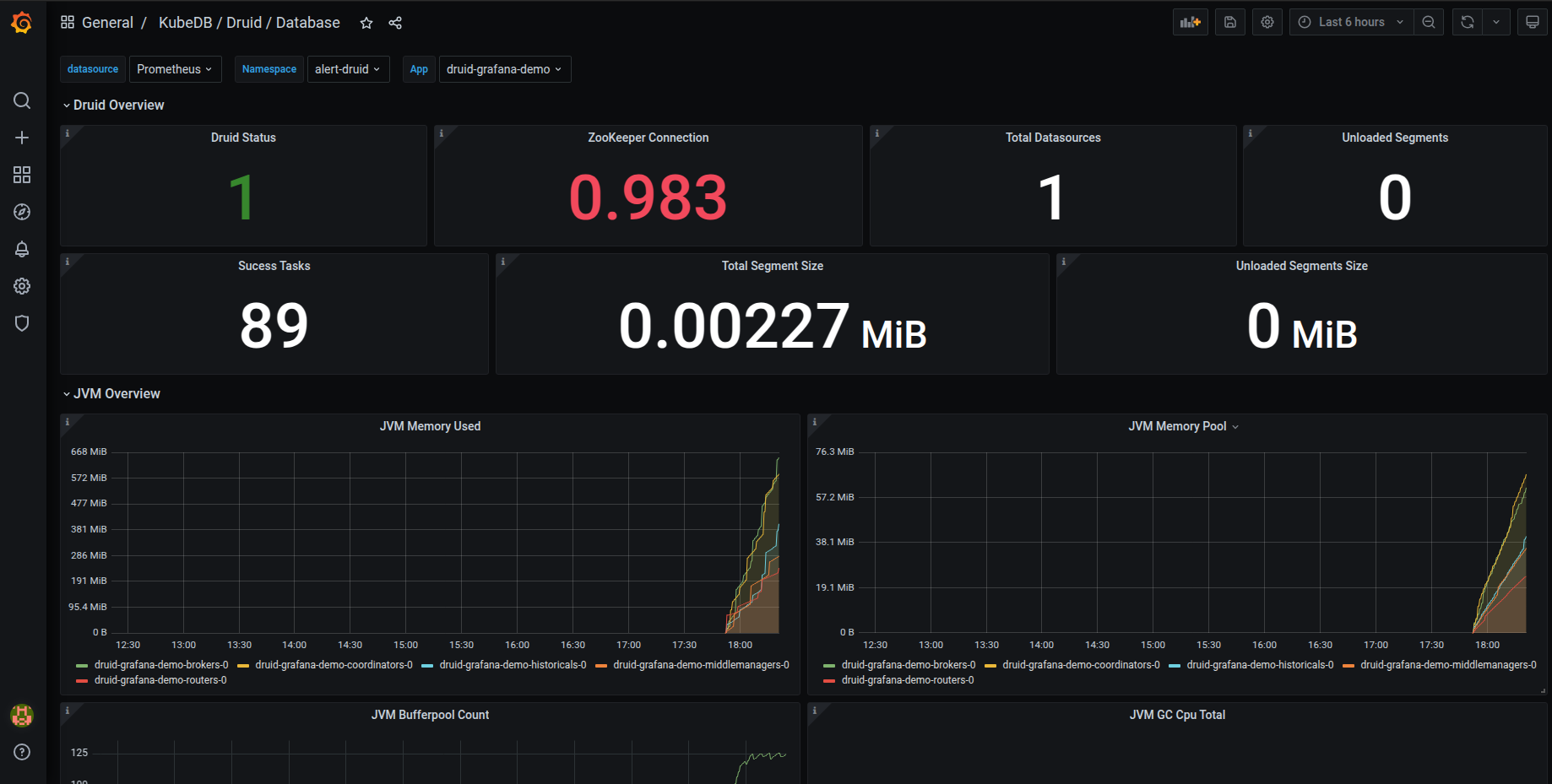

KubeDB / Druid / Database — cluster-wide segment and task metrics:

• Druid Overview — Druid status, ZooKeeper connection state, total datasources, unloaded segments (count and size), successful tasks, and total segment size
• JVM Overview — JVM memory used and JVM memory pool, aggregated across pods

Cleaning up

# Remove the Druid instance
kubectl delete druid -n demo druid-grafana-demo

# Remove the deep storage secret
kubectl delete secret deep-storage-config -n demo

# Remove namespaces
kubectl delete ns demo

# Uninstall monitoring stack (optional)
helm uninstall prometheus -n monitoring
helm uninstall panopticon -n kubeops
kubectl delete ns monitoring kubeops
