Visualize Hazelcast Metrics with Grafana Dashboard

KubeDB exposes Hazelcast metrics through a sidecar exporter. Once Prometheus scrapes those metrics, you can visualize them in Grafana using pre-built KubeDB dashboards. This tutorial walks through the full setup: deploying the monitoring stack, enabling monitoring on a Hazelcast instance, and importing the Grafana dashboards.

Before You Begin

• You need a Kubernetes cluster with kubectl configured. If you do not already have a cluster, you can create one by using kind.

• KubeDB must be installed in your cluster with kubedb-metrics enabled. Follow the setup guide here and make sure to include the flag below during installation:

  --set kubedb-metrics.enabled=true


  kubedb-metrics creates MetricsConfiguration objects for each database type, which Panopticon (Step 2) uses to expose metrics to Prometheus.

• Hazelcast requires a valid license secret. Create the license secret before deploying:

  $ kubectl create secret generic hz-license-key -n demo \
    --from-literal=license=<your-hazelcast-license-key>


• To keep monitoring resources isolated, we use a separate monitoring namespace and deploy the database in the demo namespace.

  $ kubectl create ns monitoring
  namespace/monitoring created

  $ kubectl create ns demo
  namespace/demo created


Note: YAML files used in this tutorial are stored in docs/examples/hazelcast/monitoring folder in GitHub repository kubedb/docs.

Configuration

These two steps — deploying kube-prometheus-stack and installing Panopticon — are shared prerequisites for all KubeDB database monitoring guides. If you have already completed them in another guide, skip to Step 1.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector label that Prometheus uses to pick up ServiceMonitor objects. You will need this label when enabling monitoring on the Hazelcast instance.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

The label is release: prometheus.

Step 2: Install Panopticon

Panopticon is the Appscode operator that reads MetricsConfiguration objects created by kubedb-metrics and exposes them to Prometheus. It must be installed before enabling kubedb-metrics.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Setup

Step 1: Deploy Hazelcast with Monitoring Enabled

Below is the Hazelcast object with monitoring configured to use Prometheus Operator.

apiVersion: kubedb.com/v1alpha2
kind: Hazelcast
metadata:
  name: hz-grafana-demo
  namespace: demo
spec:
  version: "5.5.2"
  replicas: 3
  licenseSecret:
    name: hz-license-key
  deletionPolicy: WipeOut
  storage:
    storageClassName: "standard"
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 2Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor for this instance.
• monitor.prometheus.serviceMonitor.labels must match the serviceMonitorSelector label of your Prometheus (release: prometheus).
• monitor.prometheus.serviceMonitor.interval sets the scrape interval to 10 seconds.

Create the Hazelcast instance:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/hazelcast/monitoring/hz-grafana-demo.yaml
hazelcast.kubedb.com/hz-grafana-demo created

Wait for it to be Ready:

$ kubectl get hazelcast -n demo hz-grafana-demo
NAME              VERSION   STATUS   AGE
hz-grafana-demo   5.5.2     Ready    3m

KubeDB creates a stats service named {hazelcast-name}-stats for the exporter:

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=hz-grafana-demo"
NAME                   TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)     AGE
hz-grafana-demo        ClusterIP   10.96.10.1    <none>        5701/TCP    3m
hz-grafana-demo-stats  ClusterIP   10.96.10.2    <none>        56790/TCP   3m

KubeDB also creates a ServiceMonitor in the demo namespace:

$ kubectl get servicemonitor -n demo
NAME                   AGE
hz-grafana-demo-stats  3m

Verify it carries the correct label:

$ kubectl get servicemonitor -n demo hz-grafana-demo-stats -o jsonpath='{.metadata.labels}'
{"release":"prometheus", ...}

Step 2: Verify Prometheus is Scraping

Port-forward the Prometheus pod:

$ kubectl port-forward -n monitoring \
  prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090

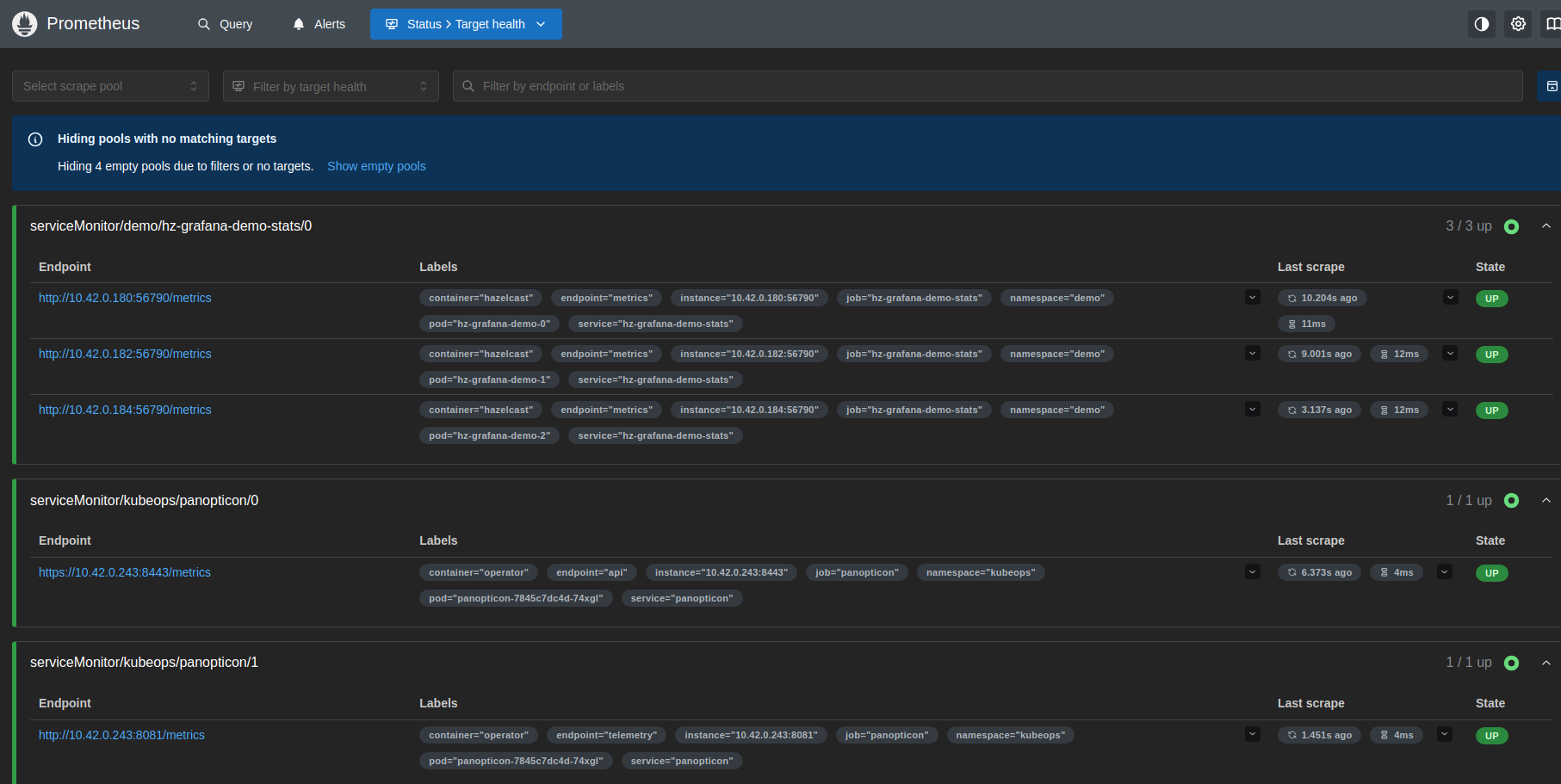

Open http://localhost:9090/targets in your browser. Look for an entry whose service label matches hz-grafana-demo-stats. Its state should be UP.

If the target is missing, check that the ServiceMonitor label (release: prometheus) matches the Prometheus serviceMonitorSelector.

Step 3: Access Grafana

Port-forward the Grafana service:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80
Forwarding from 127.0.0.1:3000 -> 80

Open http://localhost:3000. The username is admin. Retrieve the auto-generated password from the secret:

$ kubectl get secret -n monitoring prometheus-grafana \
  -o jsonpath='{.data.admin-password}' | base64 -d

Step 4: Configure Prometheus as a Data Source

If you installed Grafana via kube-prometheus-stack, Prometheus is already configured as the default data source — skip to Step 5.

For a standalone Grafana installation:

1. Go to Connections → Data sources → Add new data source.

2. Select Prometheus.

3. Set the URL to your Prometheus service:

   http://prometheus-operated.monitoring.svc:9090


4. Click Save & test. You should see Data source is working.

Step 5: Import KubeDB Hazelcast Dashboards

The KubeDB Hazelcast dashboards are distributed as JSON files. Each JSON file is a complete dashboard definition — panels, queries, variables, and layout — that Grafana loads in one shot. Without importing, you would have to build every panel and write every PromQL query by hand. Importing lets you skip that entirely.

Three dashboards are available. Download all three JSON files from the appscode/grafana-dashboards repository (hazelcast/ folder):

Import steps (repeat for each of the three files):

1. In Grafana, click Dashboards in the left sidebar.
2. Select Import from the menu.
3. Click Upload dashboard JSON file and select one of the downloaded .json files.
4. In the Prometheus dropdown that appears, select your Prometheus data source.
5. Click Import.

After importing all three files, they will appear under Dashboards in the left sidebar.

Step 6: Explore the Dashboards

After opening a dashboard, use the dropdown filters at the top to focus on a specific instance.

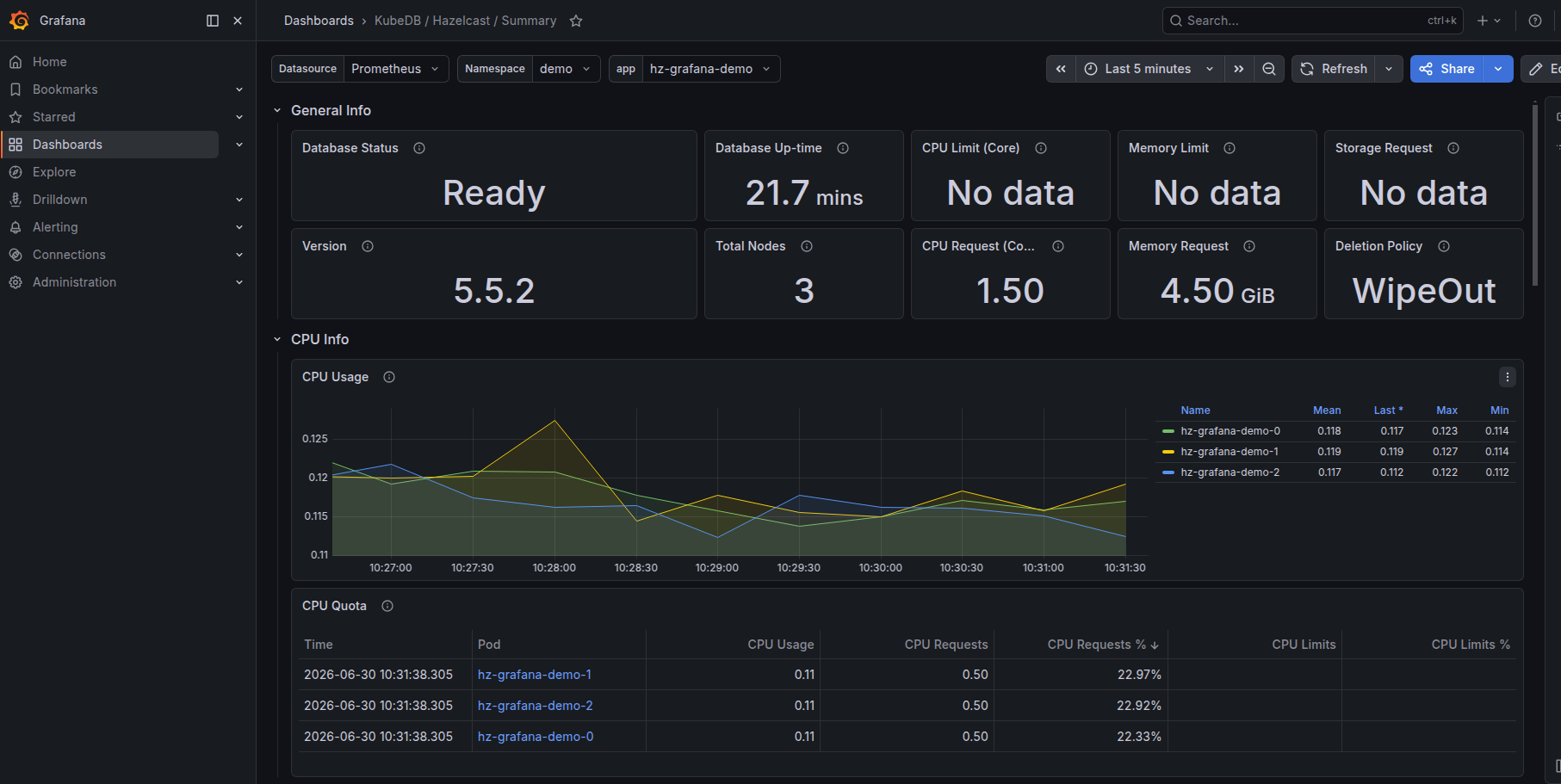

KubeDB / Hazelcast / Summary

Cluster-level overview showing general health, resource usage, storage, and network metrics.

General Info section:

• Database Status — current health (Ready, NotReady, etc.)
• Database Up-time — how long the cluster has been running
• Version — Hazelcast version (e.g., 5.5.2)
• Total Nodes — number of active member pods
• CPU / Memory Request & Limit — configured resource bounds per pod
• Deletion Policy — KubeDB deletion policy (e.g., WipeOut)

CPU Info section:

• CPU Usage — per-pod CPU usage over time
• CPU Quota — table of CPU requests, limits, and usage percentages per pod

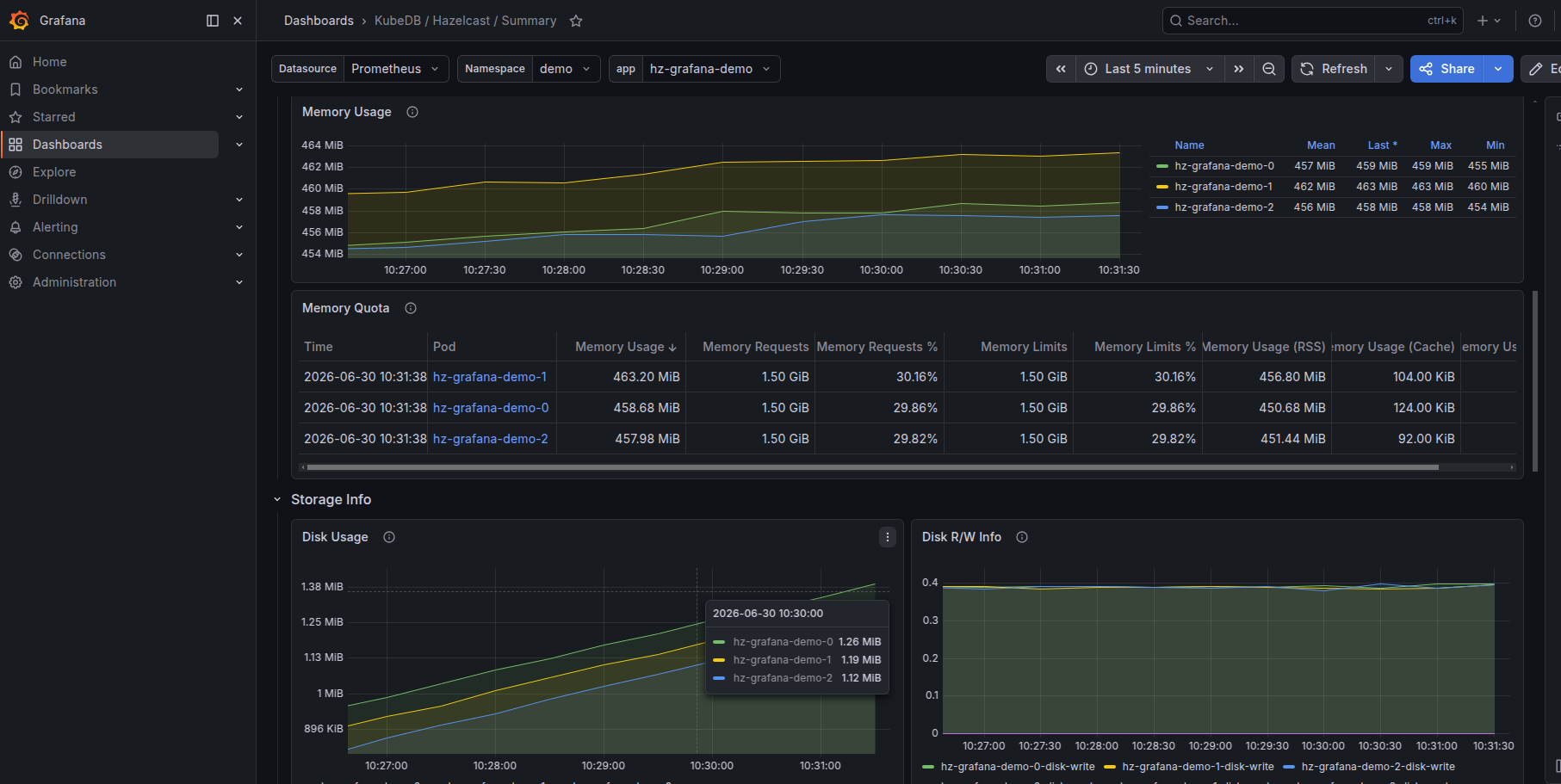

Memory Info section:

• Memory Usage — RSS memory per pod over time
• Memory Quota — table of memory requests, limits, and usage percentages per pod

Storage Info section:

• Disk Usage — per-pod disk write growth over time
• Disk R/W Info — read/write throughput per pod

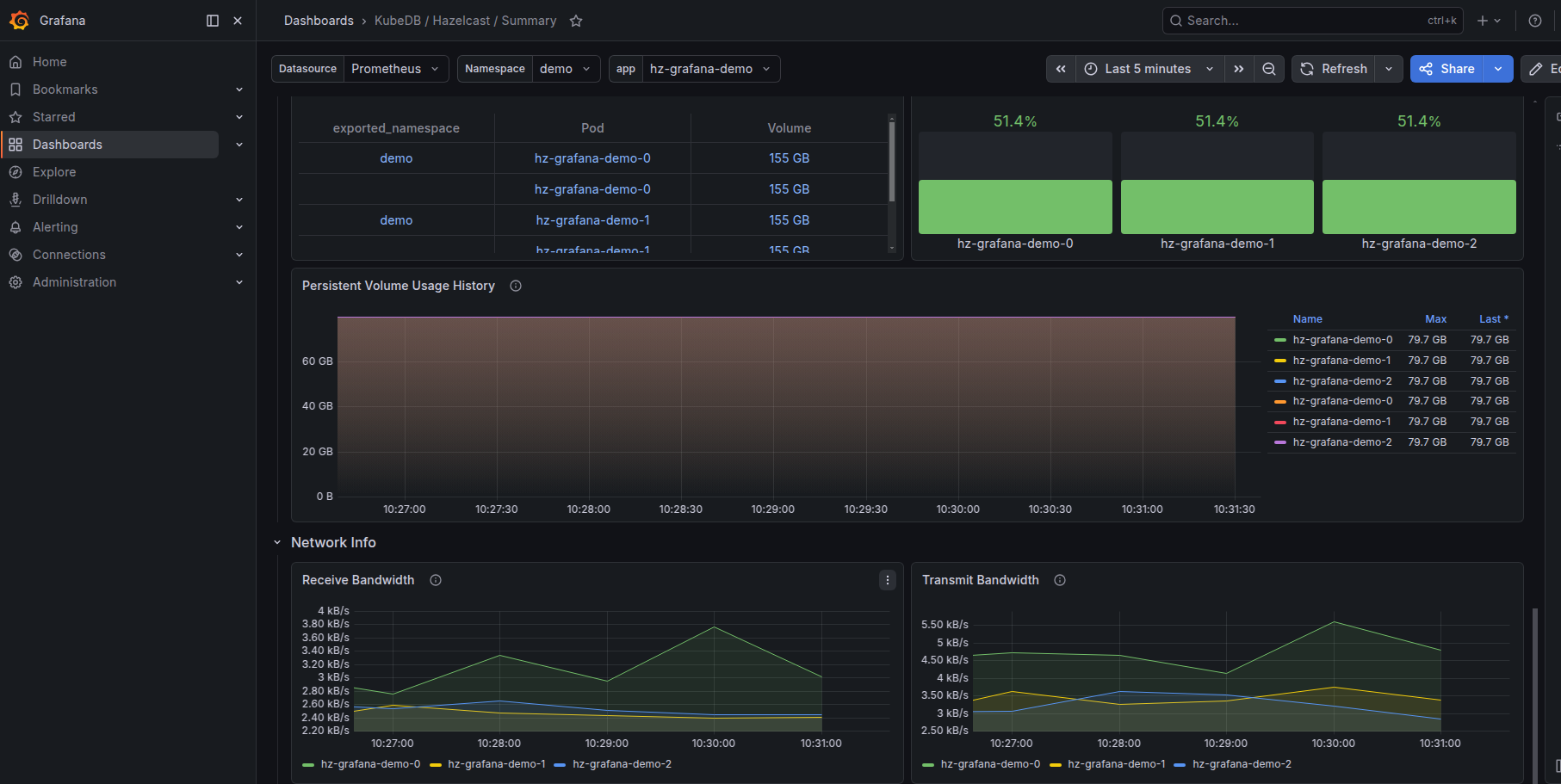

Network Info section:

• Persistent Volume Usage History — PV capacity vs used over time
• Receive Bandwidth — inbound network traffic per pod
• Transmit Bandwidth — outbound network traffic per pod

KubeDB / Hazelcast / Pod

Per-member drill-down. Use the pod dropdown to select a specific hz-grafana-demo-N pod.

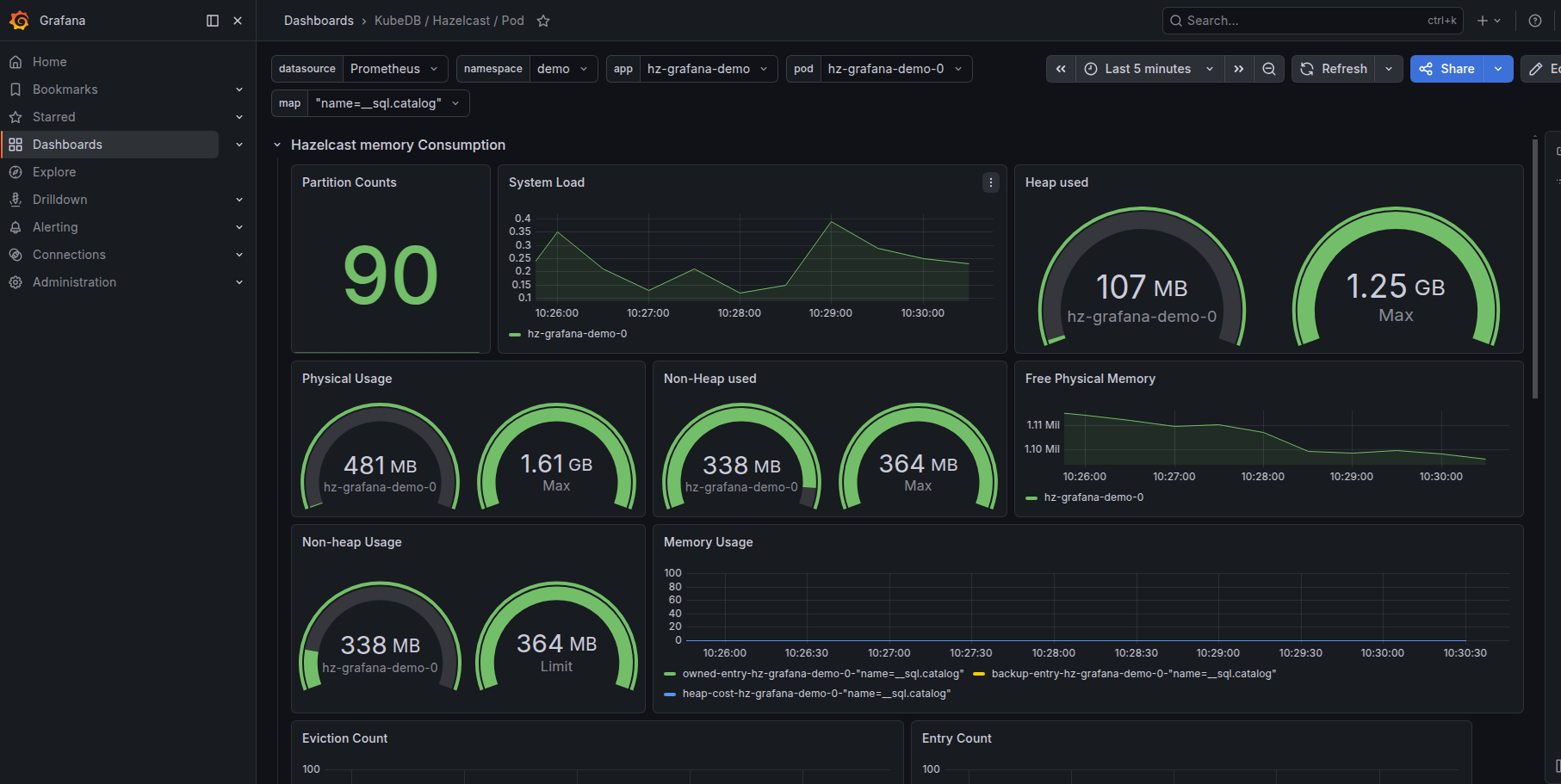

Hazelcast Memory Consumption section:

• Partition Counts — number of partitions owned by this member
• System Load — CPU system load average over time
• Heap Used / Max — JVM heap in use vs. configured maximum
• Physical Usage / Max — OS physical memory used vs. total
• Non-Heap Used / Max — JVM non-heap (metaspace, code cache) used vs. max
• Free Physical Memory — OS free memory over time
• Memory Usage — owned, backup, and heap-cost entry memory per map

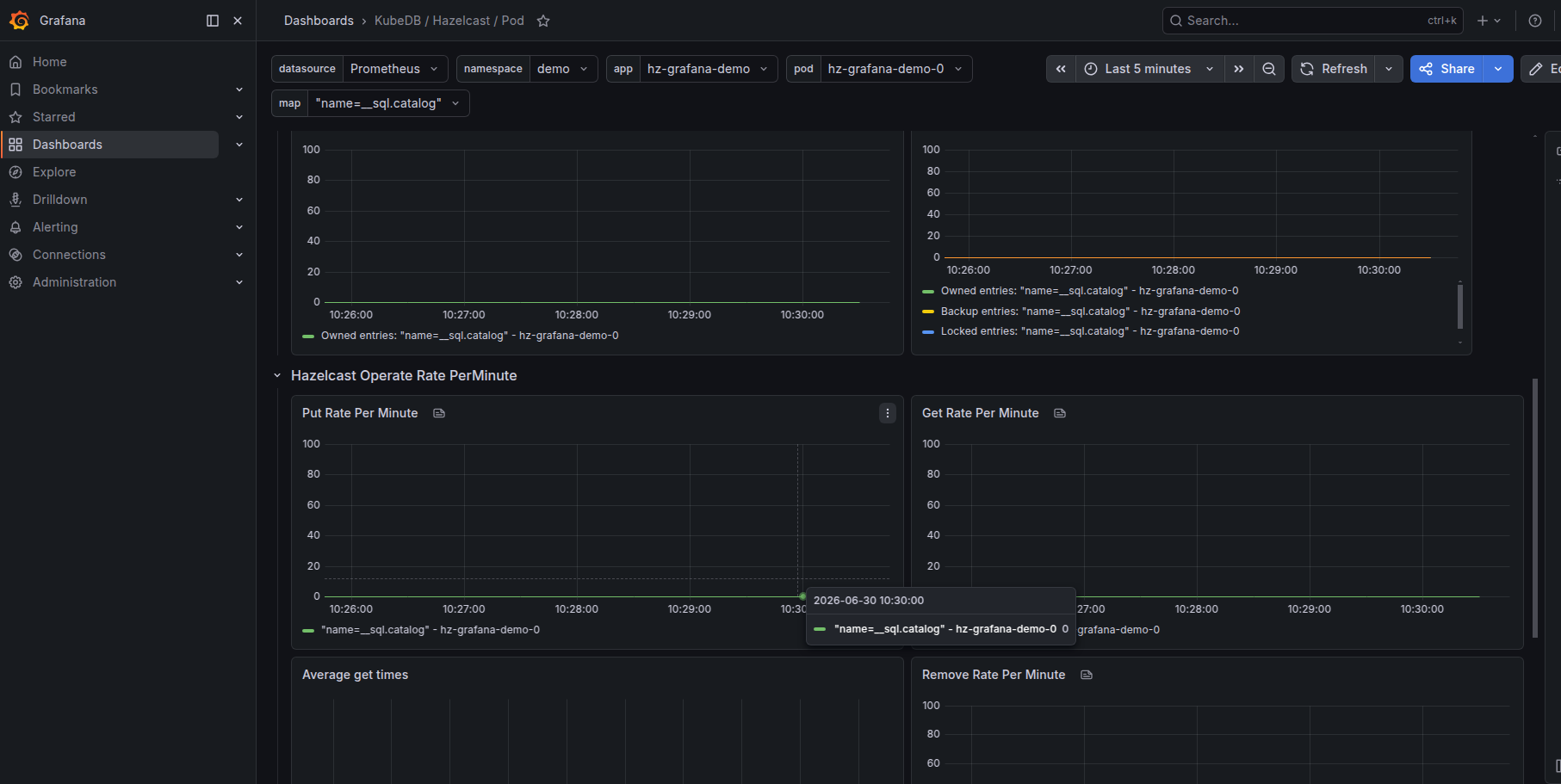

Hazelcast Operate Rate PerMinute section:

• Put Rate Per Minute — map put operations per minute on this pod
• Get Rate Per Minute — map get operations per minute on this pod
• Average Get Times — mean latency for get operations
• Remove Rate Per Minute — map remove operations per minute on this pod

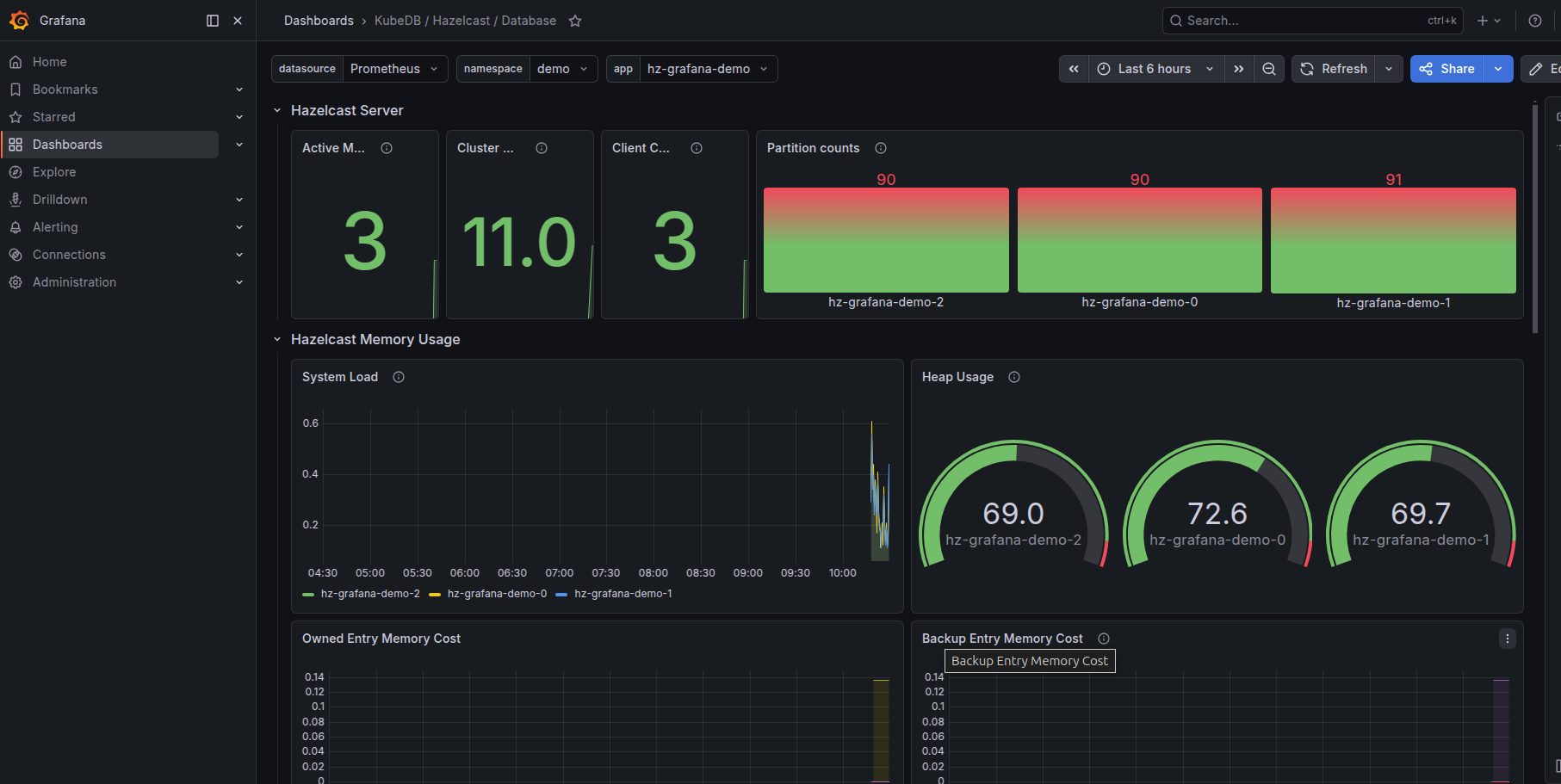

KubeDB / Hazelcast / Database

Cluster-wide map and memory metrics across all members.

Hazelcast Server section:

• Active Members — total cluster member count
• Cluster Version — Hazelcast cluster protocol version
• Client Connections — number of connected Hazelcast clients
• Partition Counts — gauge per pod showing owned partitions

Hazelcast Memory Usage section:

• System Load — system load over time across members
• Heap Usage — JVM heap usage gauge per member pod
• Owned Entry Memory Cost — heap memory consumed by owned map entries
• Backup Entry Memory Cost — heap memory consumed by backup entries

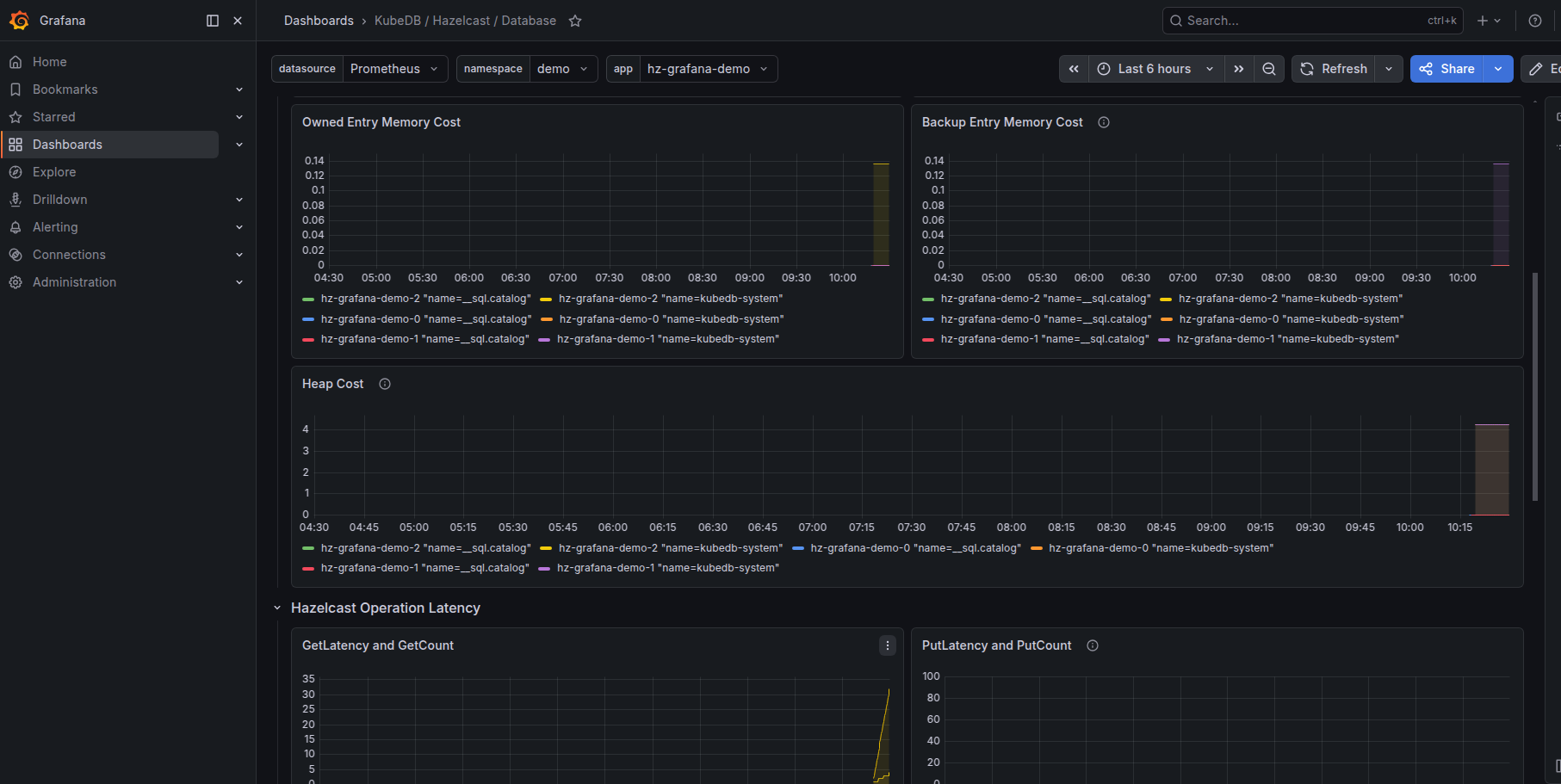

Hazelcast Operation Latency section:

• Heap Cost — total heap cost per map across all members
• GetLatency and GetCount — get operation latency and throughput
• PutLatency and PutCount — put operation latency and throughput

Cleaning up

# Remove the Hazelcast instance
kubectl delete hazelcast -n demo hz-grafana-demo

# Remove the license secret
kubectl delete secret hz-license-key -n demo

# Remove namespaces
kubectl delete ns demo

# Uninstall monitoring stack (optional)
helm uninstall prometheus -n monitoring
helm uninstall panopticon -n kubeops
kubectl delete ns monitoring kubeops
