Visualize Kafka Metrics with Grafana Dashboard

KubeDB exposes Kafka metrics — including JVM, broker/topic, and KRaft controller/quorum metrics — through a JMX Exporter running as a Java agent inside each Kafka container. Once Prometheus scrapes those metrics, you can visualize them in Grafana using a pre-built KubeDB dashboard. This tutorial walks through the full setup: deploying the monitoring stack, enabling monitoring on a Kafka instance, and importing the Grafana dashboard.

Before You Begin

• You need a Kubernetes cluster with kubectl configured. If you do not already have a cluster, you can create one by using kind.

• KubeDB must be installed in your cluster with kubedb-metrics enabled. Follow the setup guide here and make sure to include the flag below during installation:

  --set kubedb-metrics.enabled=true


  kubedb-metrics creates MetricsConfiguration objects for each database type, which Panopticon (Step 2) uses to expose metrics to Prometheus.

• To keep monitoring resources isolated, we use a separate monitoring namespace and deploy the database in the demo namespace.

  $ kubectl create ns monitoring
  namespace/monitoring created

  $ kubectl create ns demo
  namespace/demo created


Note: YAML files used in this tutorial are stored in docs/examples/kafka/monitoring and docs/examples/kafka/tls folders in GitHub repository kubedb/docs.

Configuration

These two steps — deploying kube-prometheus-stack and installing Panopticon — are shared prerequisites for all KubeDB database monitoring guides. If you have already completed them in another guide, skip to Step 1.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector label that Prometheus uses to pick up ServiceMonitor objects. You will need this label when enabling monitoring on the Kafka instance.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

The label is release: prometheus.

Step 2: Install Panopticon

Panopticon is the Appscode operator that reads MetricsConfiguration objects created by kubedb-metrics and exposes them to Prometheus. It must be installed before enabling kubedb-metrics.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Setup

Step 1: Deploy Kafka with Monitoring Enabled

Kafka runs in KRaft mode (no ZooKeeper), so the combined broker+controller nodes need at least 3 replicas to form a working Raft quorum — this is also what lets you see meaningful data in the dashboard’s KRaft Controller and KRaft Quorum panels later on.

This example also enables TLS, so first create a self-signed Issuer that KubeDB will use to issue certificates for the cluster:

$ openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout ./ca.key -out ./ca.crt -subj "/CN=kafka/O=kubedb"

$ kubectl create secret tls kafka-ca \
  --cert=ca.crt \
  --key=ca.key \
  --namespace=demo
secret/kafka-ca created

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/kafka/tls/kf-Issuer.yaml
issuer.cert-manager.io/kafka-ca-issuer created

Below is the Kafka object with monitoring configured to use Prometheus Operator.

apiVersion: kubedb.com/v1
kind: Kafka
metadata:
  name: kafka-grafana-demo
  namespace: demo
spec:
  version: "4.2.0"
  replicas: 1
  deletionPolicy: WipeOut
  storage:
    storageClassName: "local-path"
    accessModes:
    - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• replicas: 3 deploys a 3-node combined KRaft cluster (each node acts as both broker and controller), which is required for the quorum panels to show meaningful data.
• monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor for this instance.
• monitor.prometheus.exporter.port sets the port the JMX exporter serves metrics on.
• monitor.prometheus.serviceMonitor.labels must match the serviceMonitorSelector label of your Prometheus (release: prometheus).
• monitor.prometheus.serviceMonitor.interval sets the scrape interval to 10 seconds.

Create the Kafka instance:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/kafka/monitoring/kf-with-monitoring.yaml
kafka.kubedb.com/kafka created

Wait for it to be Ready:

$ kubectl get kafka -n demo kafka
NAME    VERSION   STATUS   AGE
kafka   3.9.0     Ready    5m

KubeDB creates a stats service named {kafka-name}-stats for monitoring:

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=kafka"
NAME          TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)                       AGE
kafka-pods    ClusterIP   None           <none>        9092/TCP,9093/TCP,29092/TCP   5m
kafka-stats   ClusterIP   10.96.10.2     <none>        56790/TCP                     5m

KubeDB also creates a ServiceMonitor in the demo namespace:

$ kubectl get servicemonitor -n demo
NAME          AGE
kafka-stats   5m

Verify it carries the correct label:

$ kubectl get servicemonitor -n demo kafka-stats -o jsonpath='{.metadata.labels}'
{"release":"prometheus", ...}

Step 2: Verify Prometheus is Scraping

Port-forward the Prometheus pod:

$ kubectl port-forward -n monitoring \
  prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090

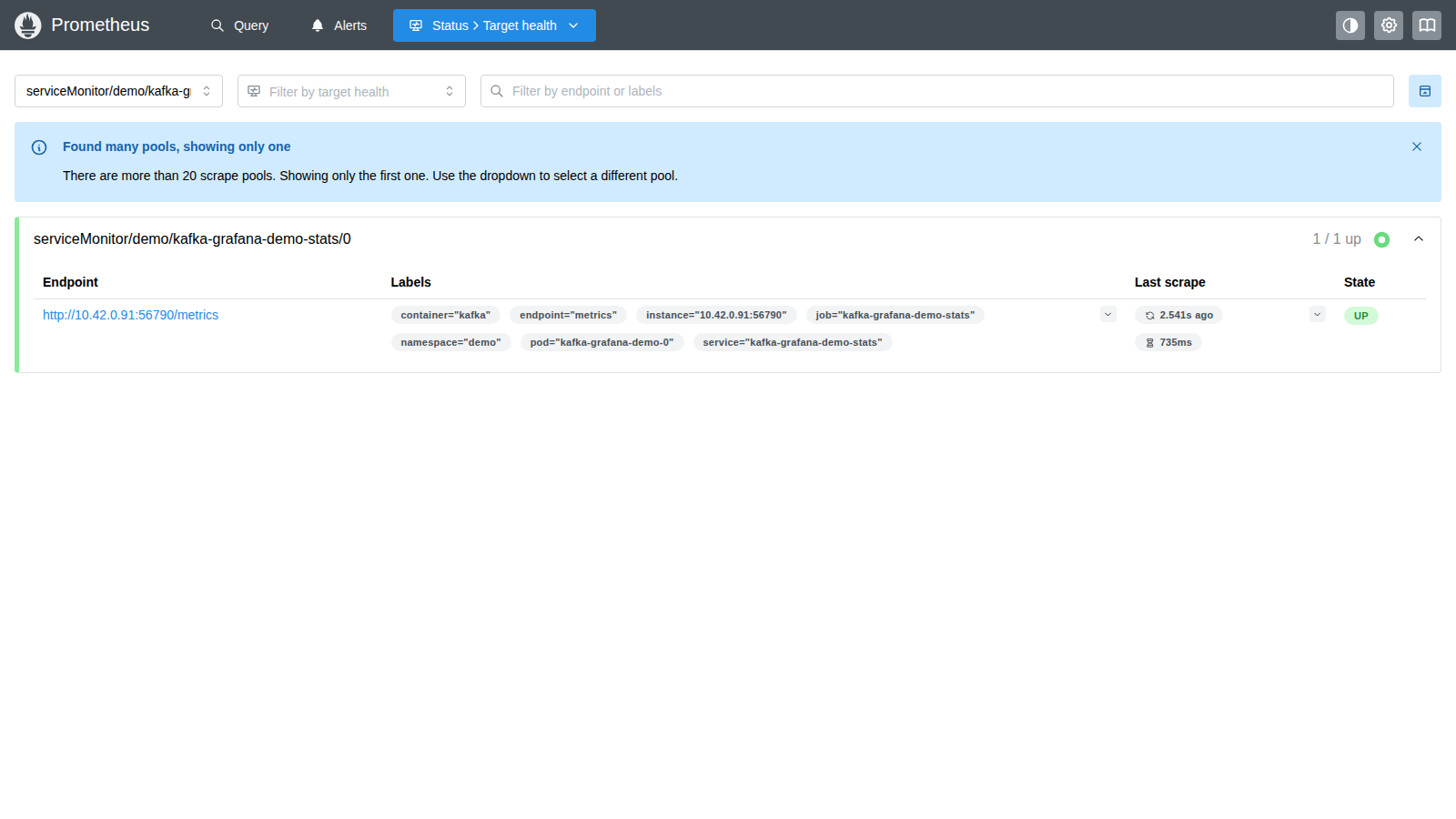

Open http://localhost:9090/targets in your browser. Look for an entry whose service label matches kafka-stats. Its state should be UP.

If the target is missing, check that the ServiceMonitor label (release: prometheus) matches the Prometheus serviceMonitorSelector.

Step 3: Access Grafana

Port-forward the Grafana service:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80
Forwarding from 127.0.0.1:3000 -> 80

Open http://localhost:3000. The username is admin. Retrieve the auto-generated password from the secret:

$ kubectl get secret -n monitoring prometheus-grafana \
  -o jsonpath='{.data.admin-password}' | base64 -d

After a successful login you will see the Grafana home page:

Step 4: Configure Prometheus as a Data Source

If you installed Grafana via kube-prometheus-stack, Prometheus is already configured as the default data source — skip to Step 5.

For a standalone Grafana installation:

1. Go to Connections → Data sources → Add new data source.

2. Select Prometheus.

3. Set the URL to your Prometheus service:

   http://prometheus-operated.monitoring.svc:9090


4. Click Save & test. You should see Data source is working.

Step 5: Import KubeDB Kafka Dashboard

The KubeDB Kafka dashboard is distributed as a single JSON file: kafka_database_dashboard.json in the opnpulse/dashboards repository (kafka/ folder). The JSON file is a complete dashboard definition — panels, queries, variables, and layout — that Grafana loads in one shot. Without importing, you would have to build every panel and write every PromQL query by hand. Importing lets you skip that entirely.

Download kafka_database_dashboard.json from that repository, then:

1. In Grafana, click the + icon in the left sidebar and select Import.
2. Click Upload JSON file and select the downloaded file.
3. In the datasource dropdown that appears, select your Prometheus data source.
4. Click Import.

The import page looks like this:

After importing, the dashboard appears as KubeDB Kafka Dashboard under Dashboards in the left sidebar. It contains four sections: Kafka Server, Broker Topic Metrics, KRaft Controller Monitoring Metrics, and KRaft Quorum Monitoring Metrics.

Step 6: Explore the Dashboard

Use the dropdown filters at the top of the dashboard to focus on a specific instance.

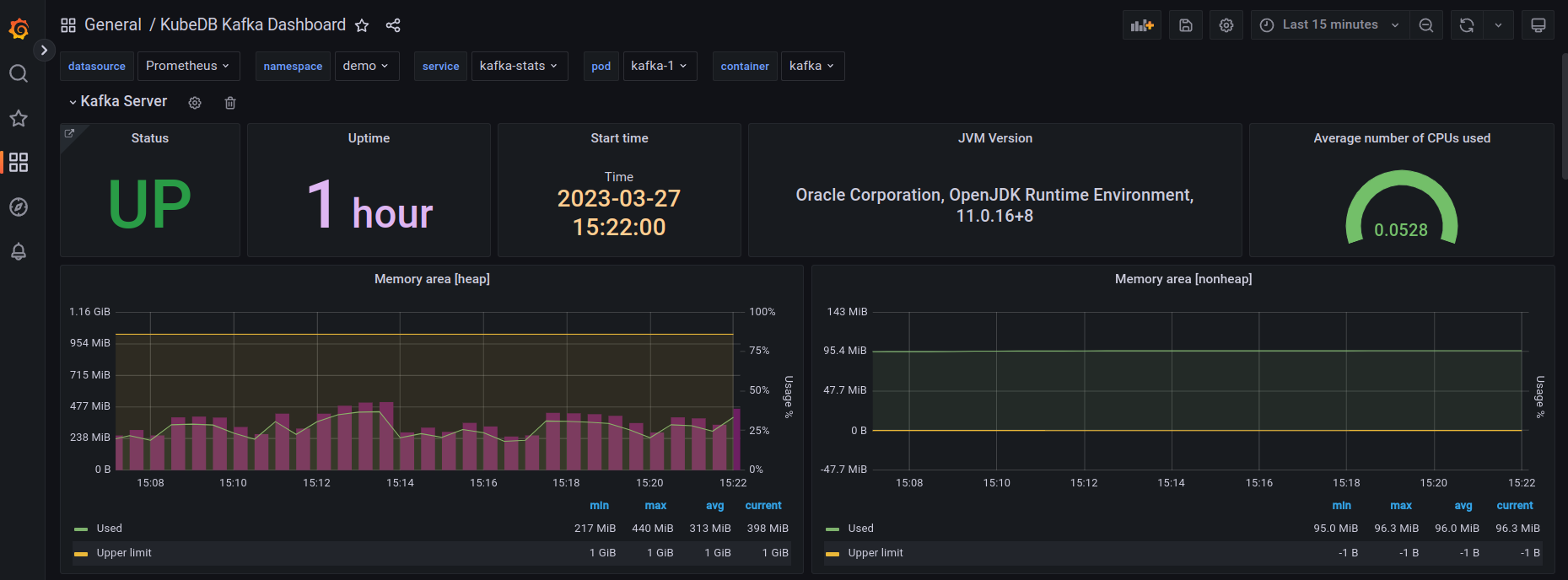

Kafka Server — JVM and process-level health of the selected broker:

• Status / Uptime / Start time — whether the broker’s JMX exporter is reachable, and how long it has been up
• JVM Version — the JVM the broker is running on
• Average number of CPUs used — CPU consumption of the process
• Memory area [heap] / [nonheap] — heap and non-heap JVM memory usage over time

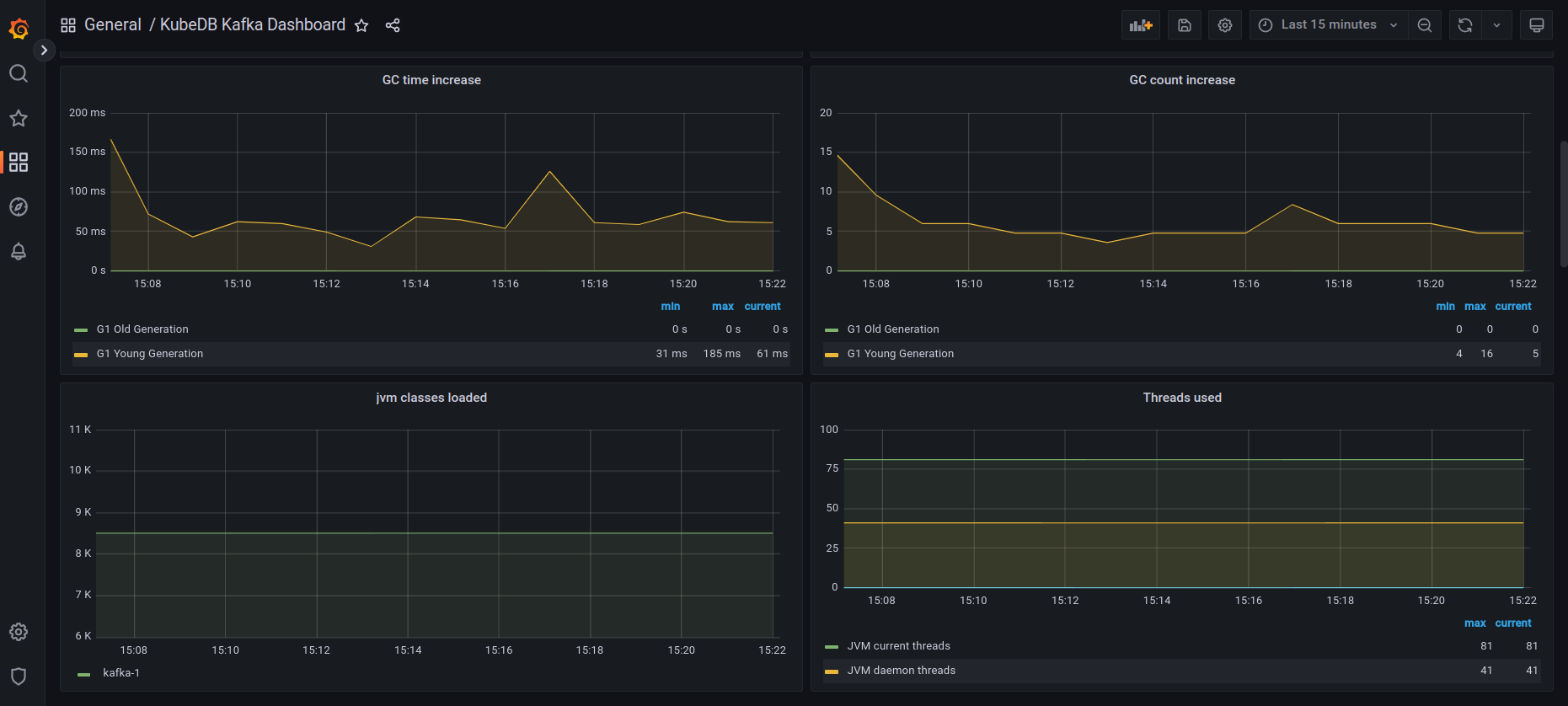

• GC time increase / GC count increase — garbage collection pauses and frequency, by generation
• JVM classes loaded — number of loaded classes (a rough proxy for a leak if it keeps growing)
• Threads used — current and daemon JVM thread counts

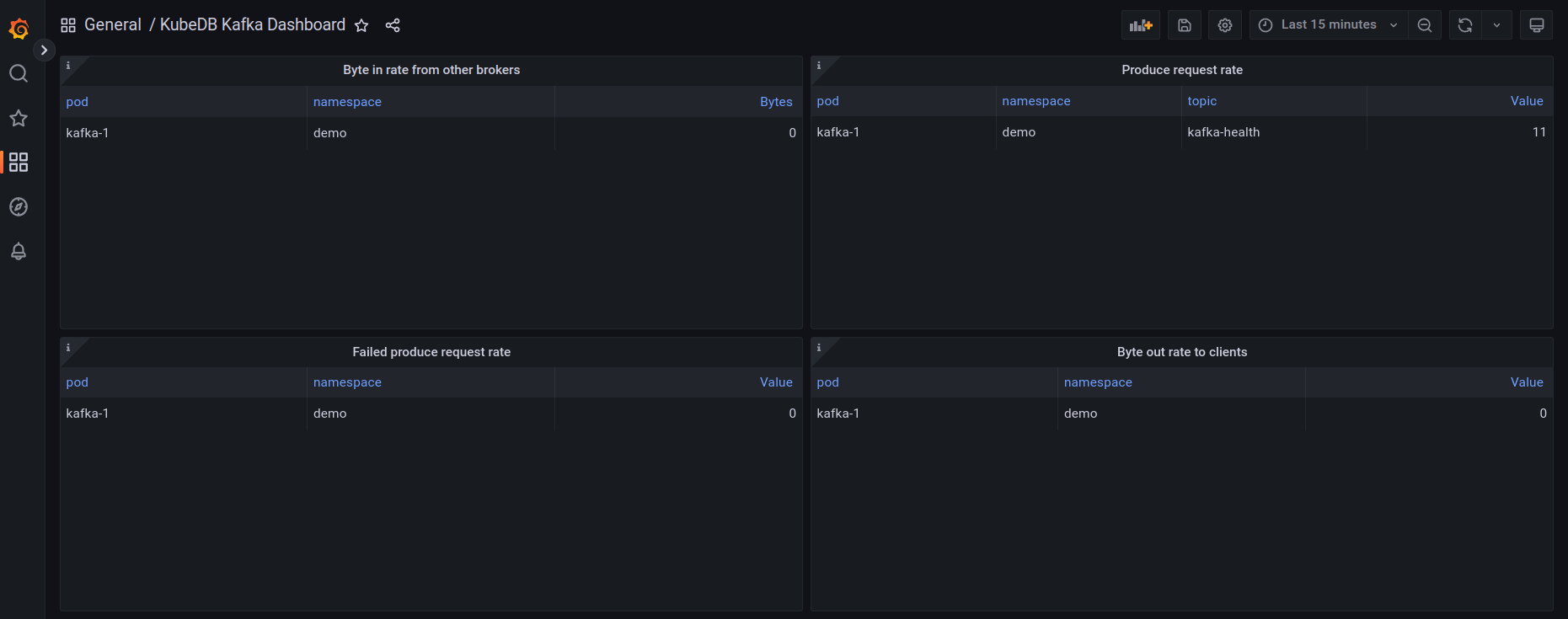

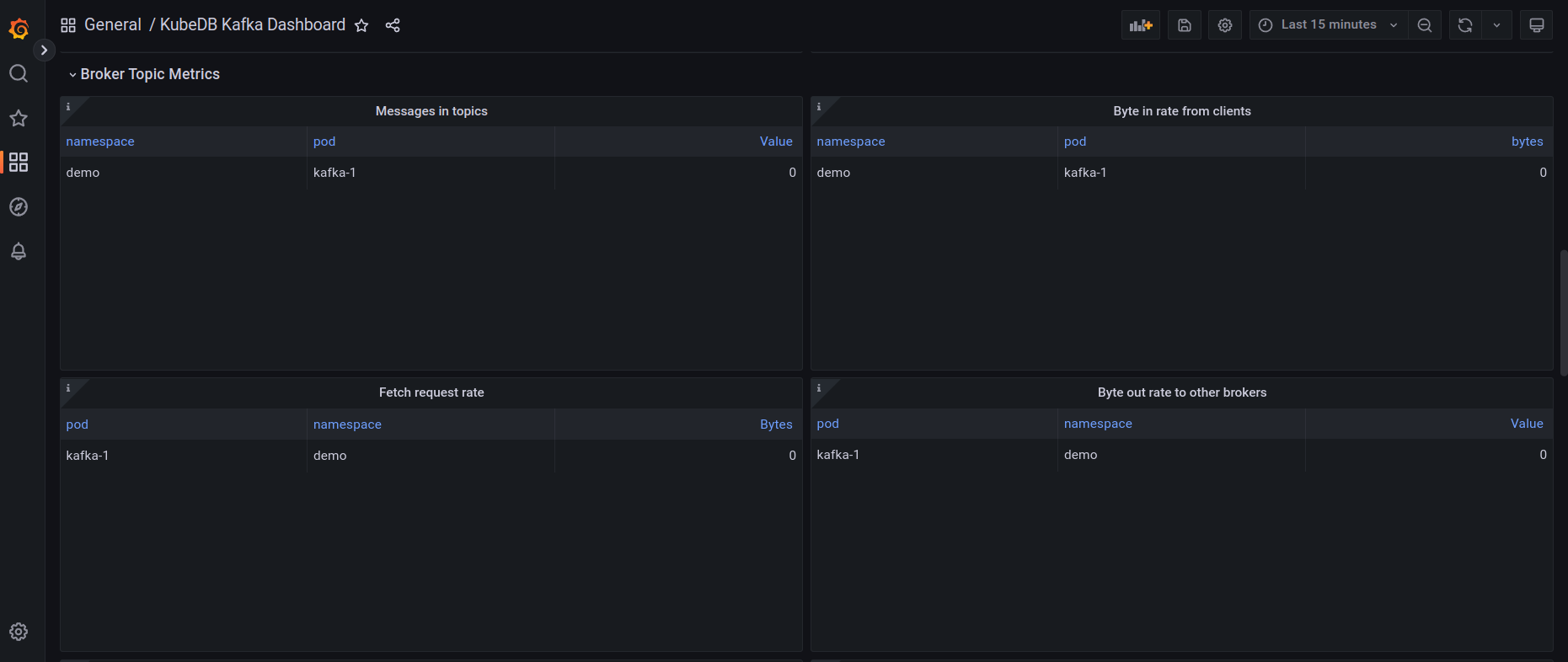

Broker Topic Metrics — throughput at the broker/topic level:

• Messages in topics — incoming message rate
• Byte in / out rate from clients — client-facing produce/consume throughput
• Byte in / out rate from / to other brokers — inter-broker replication traffic
• Fetch request rate / Produce request rate — request throughput
• Failed produce request rate — produce requests that failed (should stay at 0)

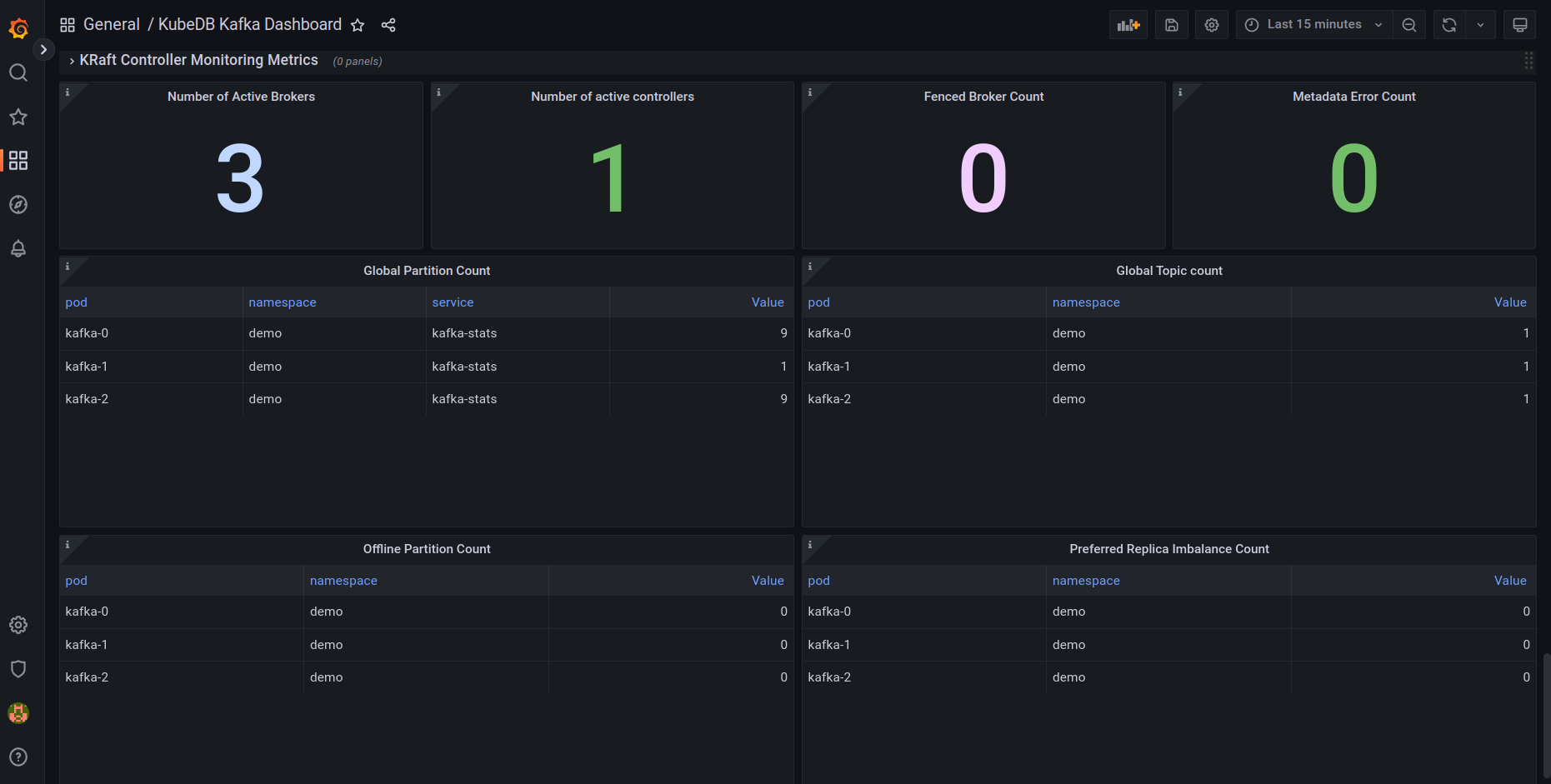

KRaft Controller Monitoring Metrics — health of the KRaft metadata quorum’s controller layer:

• Number of Active Brokers / Number of active controllers — cluster membership; exactly one broker should be the active controller
• Fenced Broker Count — brokers the controller has fenced out (non-zero means a broker is unhealthy)
• Metadata Error Count — errors while applying metadata records (should stay at 0)
• Global Partition Count / Global Topic count — partitions and topics tracked cluster-wide
• Offline Partition Count — partitions with no leader (non-zero means data unavailability)
• Preferred Replica Imbalance Count — partitions not currently led by their preferred replica

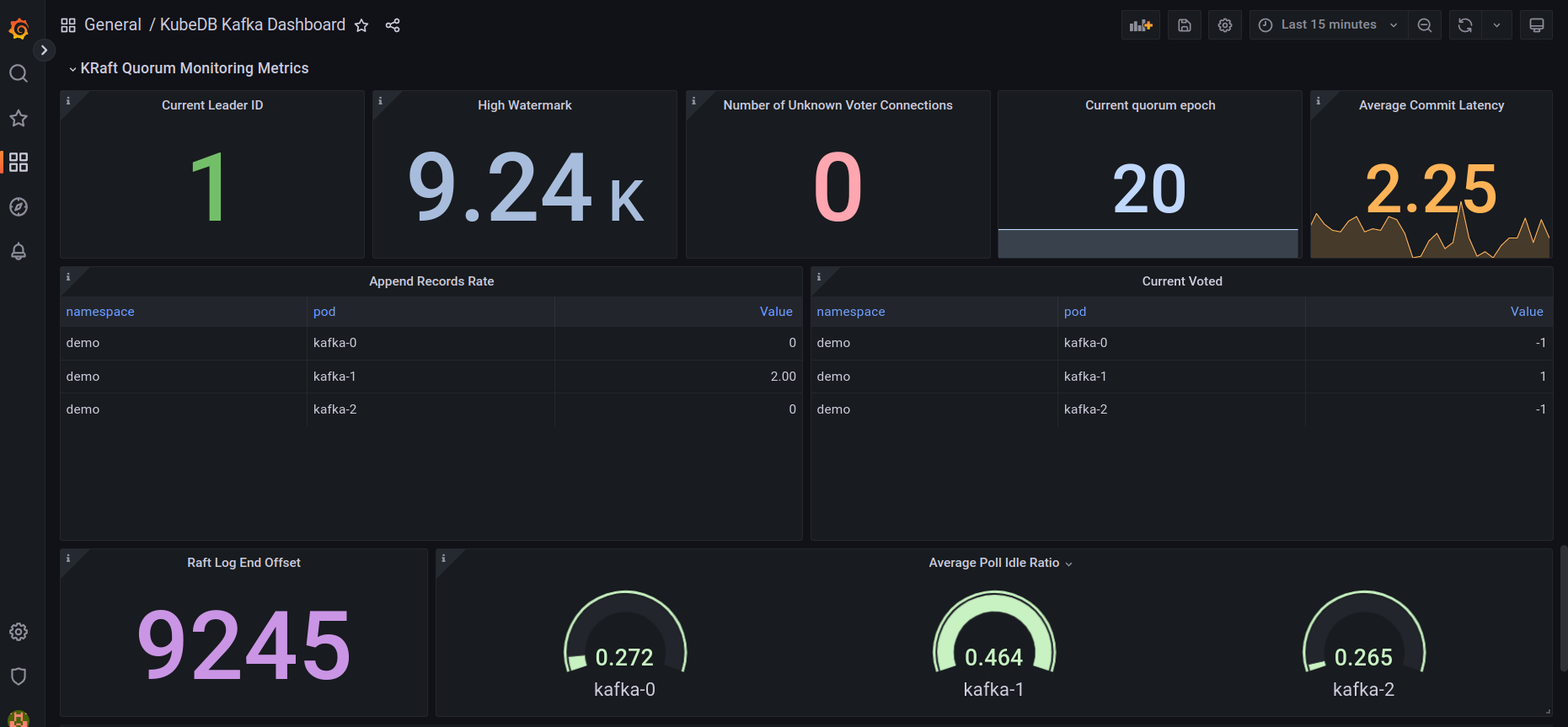

KRaft Quorum Monitoring Metrics — health of the Raft replication protocol itself:

• Current Leader ID / Current quorum epoch — which node is the metadata leader, and the current election epoch
• High Watermark / Raft Log End Offset — how far the metadata log has been committed and written
• Number of Unknown Voter Connections — connections to voters outside the current quorum (should stay at 0)
• Average Commit Latency — time to commit a metadata record to the quorum
• Append Records Rate — rate of metadata records appended to the log, per node
• Current Voted — which candidate each node voted for in the current epoch
• Average Poll Idle Ratio — fraction of time each node’s Raft I/O thread spends idle (a low value means the thread is saturated)

Cleaning up

# Remove the Kafka instance
kubectl delete kafka -n demo kafka

# Remove the issuer and CA secret
kubectl delete issuer -n demo kafka-ca-issuer
kubectl delete secret -n demo kafka-ca

# Remove namespaces
kubectl delete ns demo

# Uninstall monitoring stack (optional)
helm uninstall prometheus -n monitoring
helm uninstall panopticon -n kubeops
kubectl delete ns monitoring kubeops
