Visualize MongoDB Metrics with Grafana Dashboard

KubeDB exposes MongoDB metrics through a sidecar exporter. Once Prometheus scrapes those metrics, you can visualize them in Grafana using a pre-built KubeDB dashboard. This tutorial walks through the full setup: deploying the monitoring stack, enabling monitoring on a MongoDB instance, and importing the Grafana dashboard.

Before You Begin

• You need a Kubernetes cluster with kubectl configured. If you do not already have a cluster, you can create one by using kind.

• KubeDB must be installed in your cluster with kubedb-metrics enabled. Follow the setup guide here and make sure to include the flag below during installation:

  --set kubedb-metrics.enabled=true


  kubedb-metrics creates MetricsConfiguration objects for each database type, which Panopticon (Step 2) uses to expose metrics to Prometheus.

• To keep monitoring resources isolated, we use a separate monitoring namespace and deploy the database in the demo namespace.

  $ kubectl create ns monitoring
  namespace/monitoring created

  $ kubectl create ns demo
  namespace/demo created


Note: YAML files used in this tutorial are stored in docs/examples/mongodb/monitoring folder in GitHub repository kubedb/docs.

Configuration

These two steps — deploying kube-prometheus-stack and installing Panopticon — are shared prerequisites for all KubeDB database monitoring guides. If you have already completed them in another guide, skip to Step 1.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector label that Prometheus uses to pick up ServiceMonitor objects. You will need this label when enabling monitoring on the MongoDB instance.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

The label is release: prometheus.

Step 2: Install Panopticon

Panopticon is the Appscode operator that reads MetricsConfiguration objects created by kubedb-metrics and exposes them to Prometheus. It must be installed before enabling kubedb-metrics.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Setup

Step 1: Deploy MongoDB with Monitoring Enabled

Below is the MongoDB object with monitoring configured to use Prometheus Operator. It deploys a 3-member replica set — this is what lets you see meaningful data in the dashboard’s replication and oplog panels later on.

apiVersion: kubedb.com/v1
kind: MongoDB
metadata:
  name: mg-grafana-demo
  namespace: demo
spec:
  version: "8.0.17"
  replicas: 3
  replicaSet:
    name: rs0
  deletionPolicy: WipeOut
  storage:
    storageClassName: "standard"
    accessModes:
    - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• replicas: 3 and replicaSet.name: rs0 deploy a 3-member replica set named rs0, which is required for the replication and oplog panels to show meaningful data.
• monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor for this instance.
• monitor.prometheus.serviceMonitor.labels must match the serviceMonitorSelector label of your Prometheus (release: prometheus).
• monitor.prometheus.serviceMonitor.interval sets the scrape interval to 10 seconds.

Create the MongoDB instance:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/mongodb/monitoring/mg-grafana-demo.yaml
mongodb.kubedb.com/mg-grafana-demo created

Wait for it to be Ready:

$ kubectl get mongodb -n demo mg-grafana-demo
NAME              VERSION   STATUS   AGE
mg-grafana-demo   8.0.17    Ready    5m

KubeDB creates a stats service named {mongodb-name}-stats for the exporter:

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=mg-grafana-demo"
NAME                    TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
mg-grafana-demo         ClusterIP   10.96.10.1     <none>        27017/TCP   5m
mg-grafana-demo-pods    ClusterIP   None           <none>        27017/TCP   5m
mg-grafana-demo-stats   ClusterIP   10.96.10.2     <none>        56790/TCP   5m

KubeDB also creates a ServiceMonitor in the demo namespace:

$ kubectl get servicemonitor -n demo
NAME                    AGE
mg-grafana-demo-stats   5m

Verify it carries the correct label:

$ kubectl get servicemonitor -n demo mg-grafana-demo-stats -o jsonpath='{.metadata.labels}'
{"release":"prometheus", ...}

Step 2: Verify Prometheus is Scraping

Port-forward the Prometheus pod:

$ kubectl port-forward -n monitoring \
  prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090

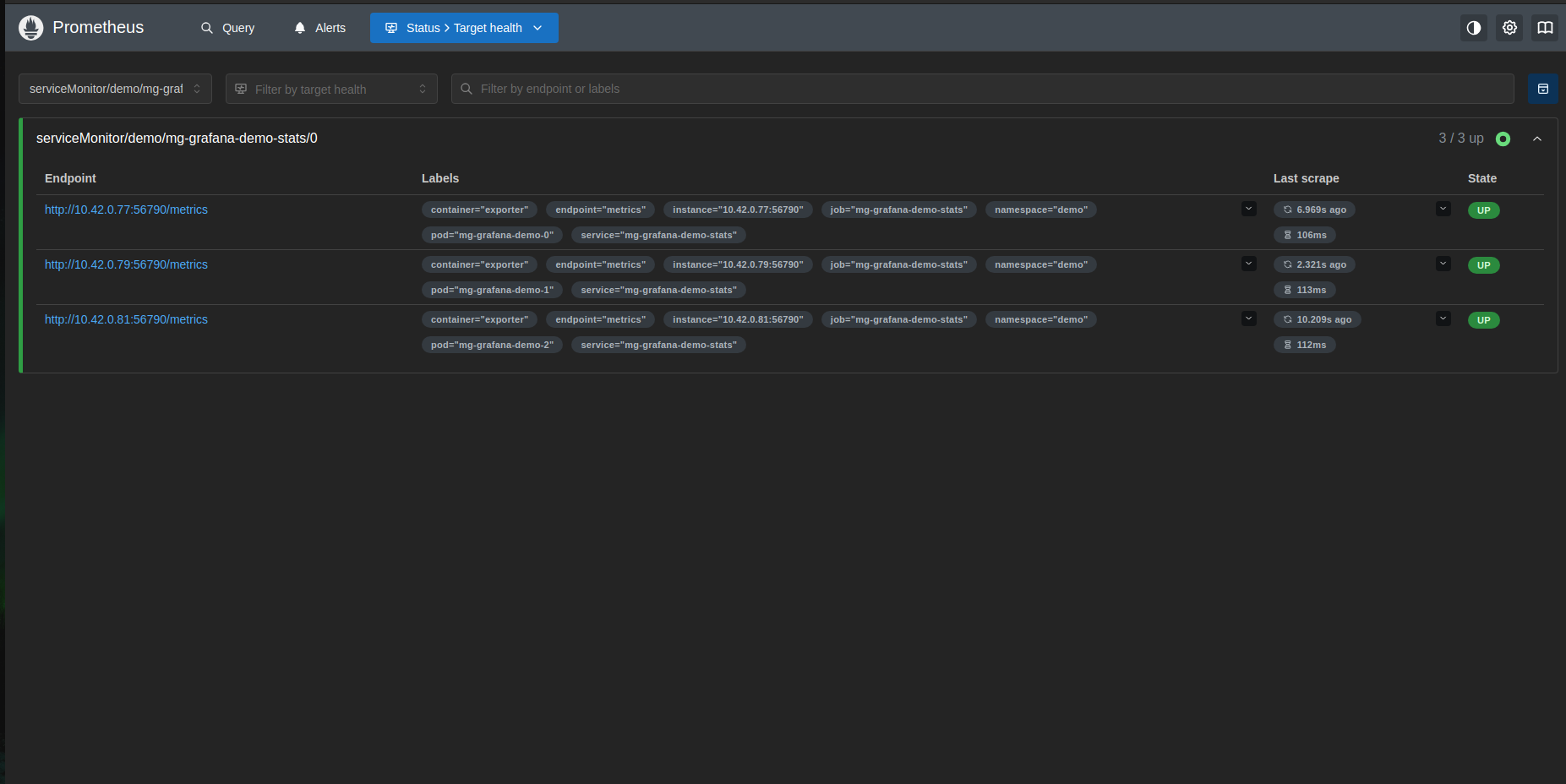

Open http://localhost:9090/targets in your browser. Look for an entry whose service label matches mg-grafana-demo-stats. Its state should be UP.

If the target is missing, check that the ServiceMonitor label (release: prometheus) matches the Prometheus serviceMonitorSelector.

Step 3: Access Grafana

Port-forward the Grafana service:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80
Forwarding from 127.0.0.1:3000 -> 80

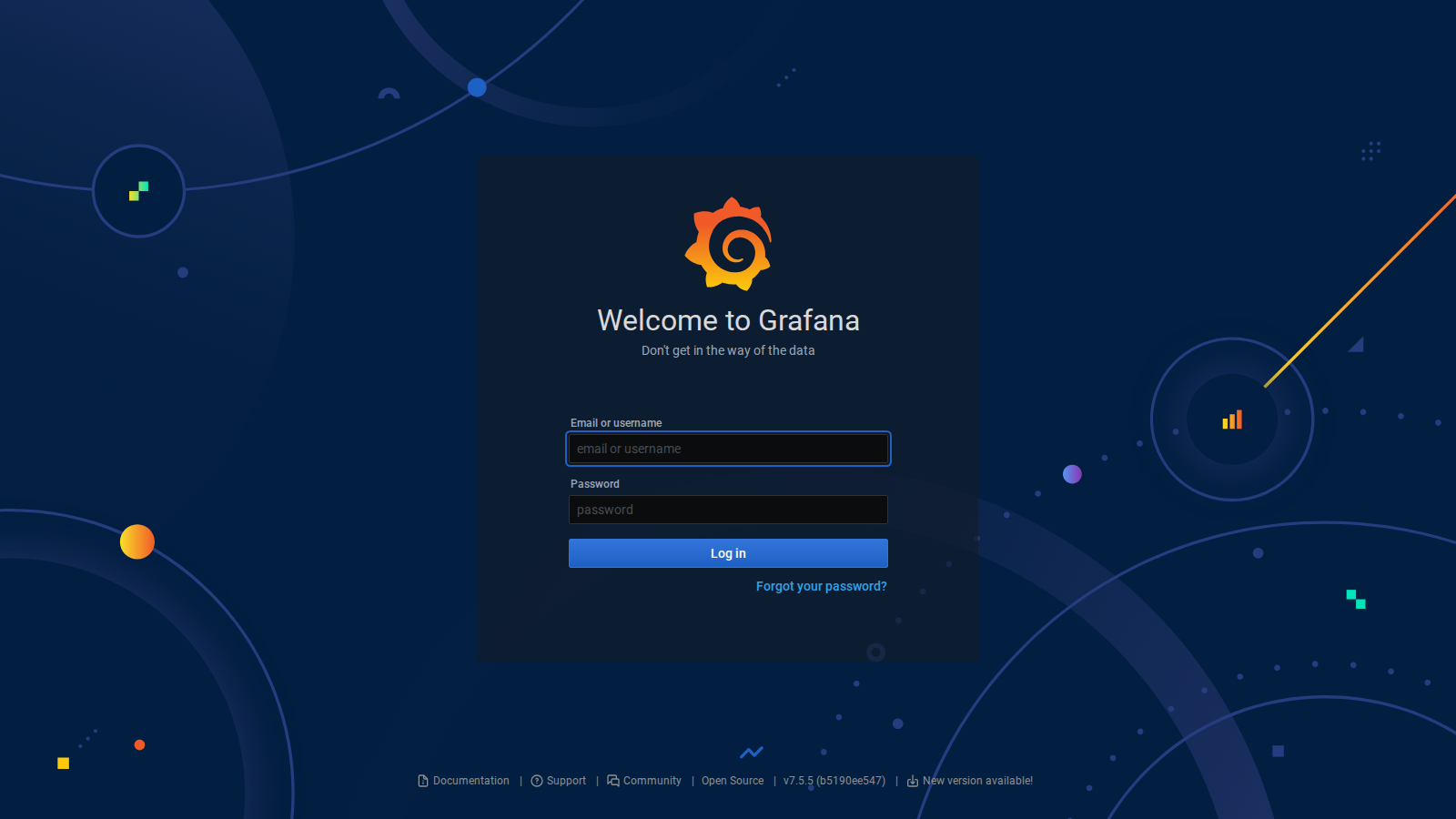

Open http://localhost:3000. The username is admin. Retrieve the auto-generated password from the secret:

$ kubectl get secret -n monitoring prometheus-grafana \
  -o jsonpath='{.data.admin-password}' | base64 -d

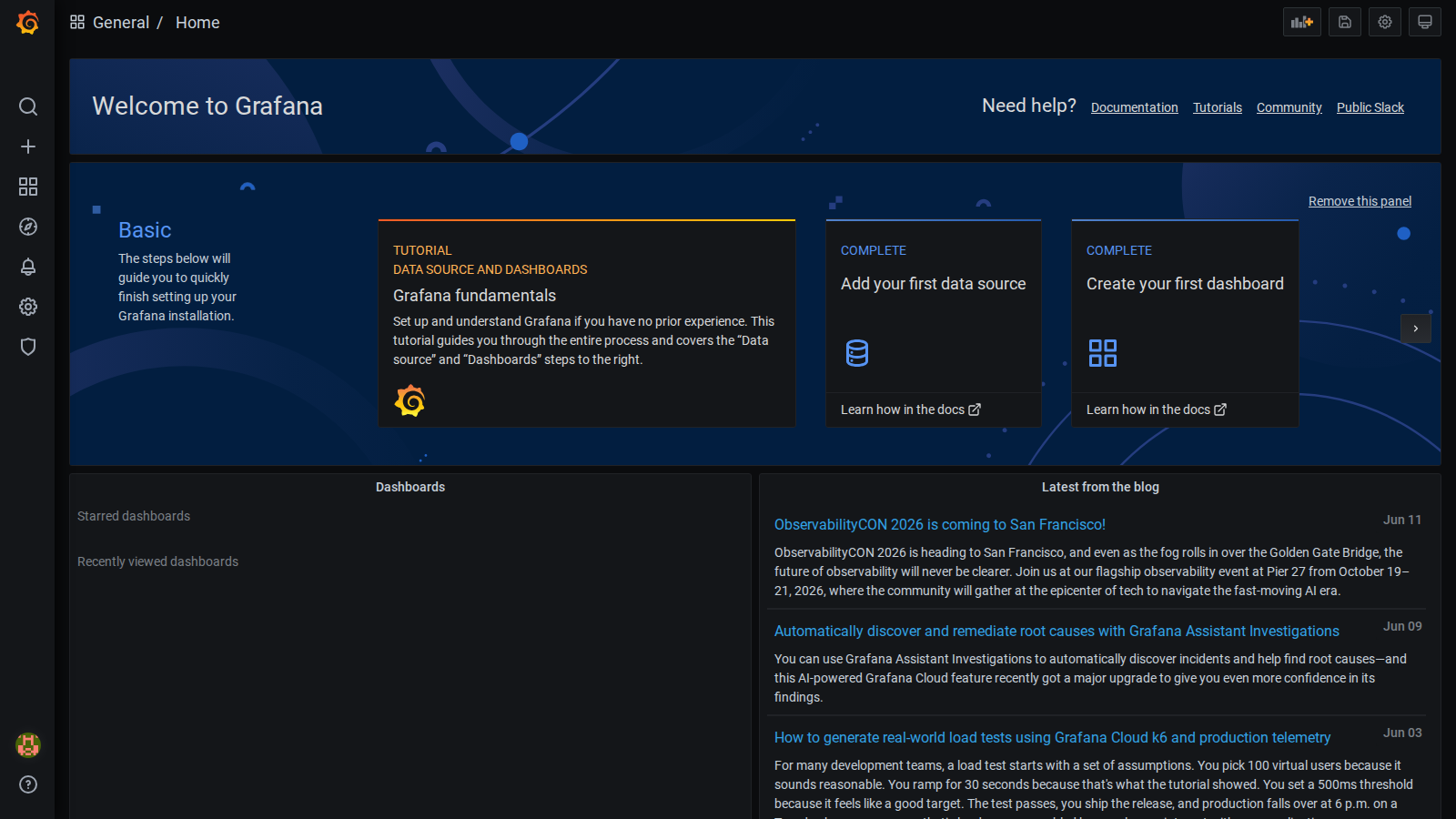

After a successful login you will see the Grafana home page:

Step 4: Configure Prometheus as a Data Source

If you installed Grafana via kube-prometheus-stack, Prometheus is already configured as the default data source — skip to Step 5.

For a standalone Grafana installation:

1. Go to Connections → Data sources → Add new data source.

2. Select Prometheus.

3. Set the URL to your Prometheus service:

   http://prometheus-operated.monitoring.svc:9090


4. Click Save & test. You should see Data source is working.

Step 5: Import KubeDB MongoDB Dashboard

The KubeDB MongoDB dashboards are distributed as JSON files. Each JSON file is a complete dashboard definition — panels, queries, variables, and layout — that Grafana loads in one shot. Without importing, you would have to build every panel and write every PromQL query by hand. Importing lets you skip that entirely.

Three dashboards are available. Download all three JSON files from the opnpulse/dashboards repository (mongodb/ folder):

Import steps (repeat for each of the three files):

1. In Grafana, click the + icon in the left sidebar.
2. Select Import from the menu.
3. Click Upload JSON file and select one of the downloaded .json files.
4. In the Prometheus dropdown that appears, select your Prometheus data source.
5. Click Import.

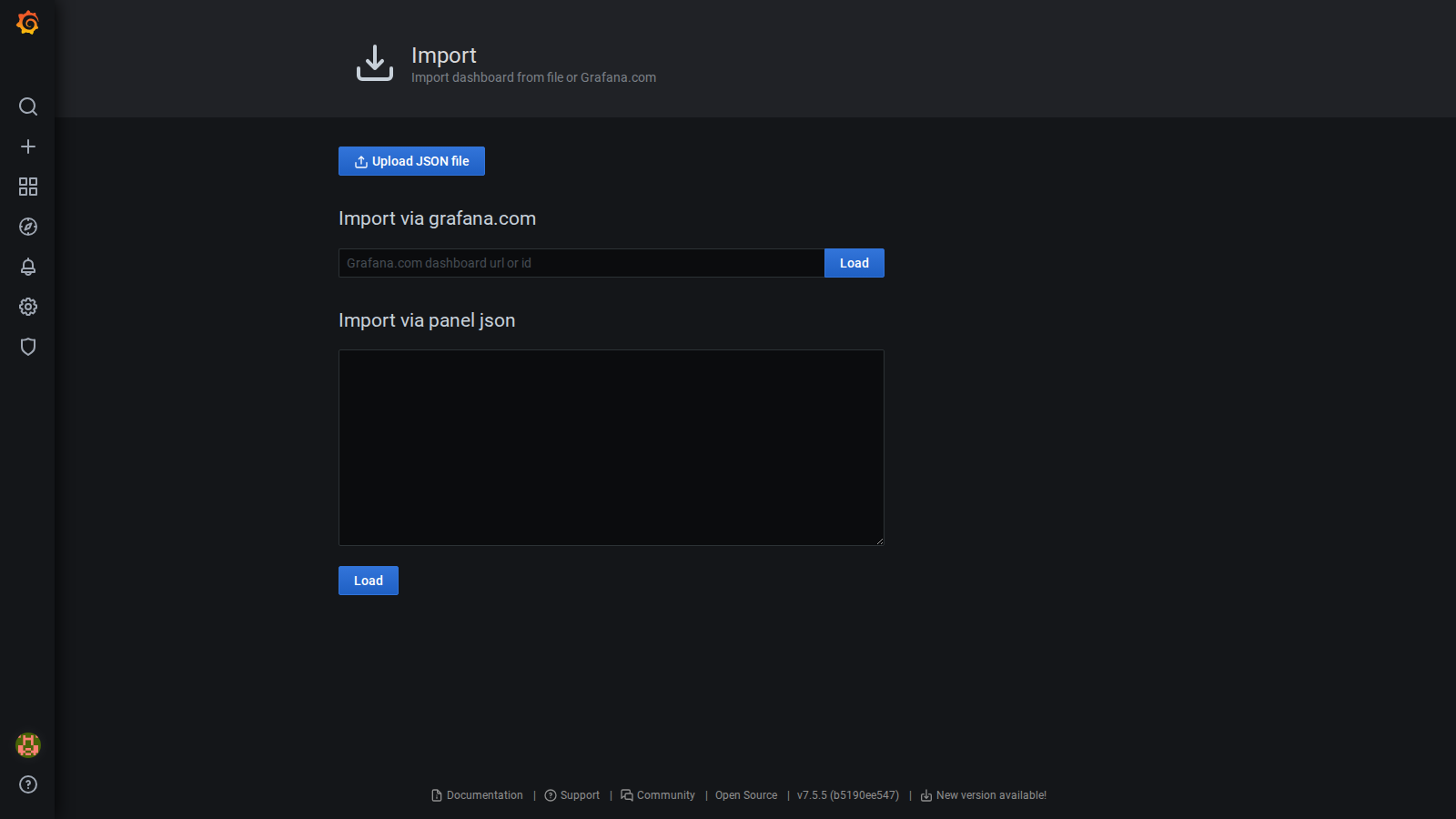

The import page looks like this — click Upload dashboard JSON file to select the file:

After importing all three files, they will appear under Dashboards in the left sidebar.

Step 6: Explore the Dashboard

After opening a dashboard, use the dropdown filters at the top to focus on a specific instance.

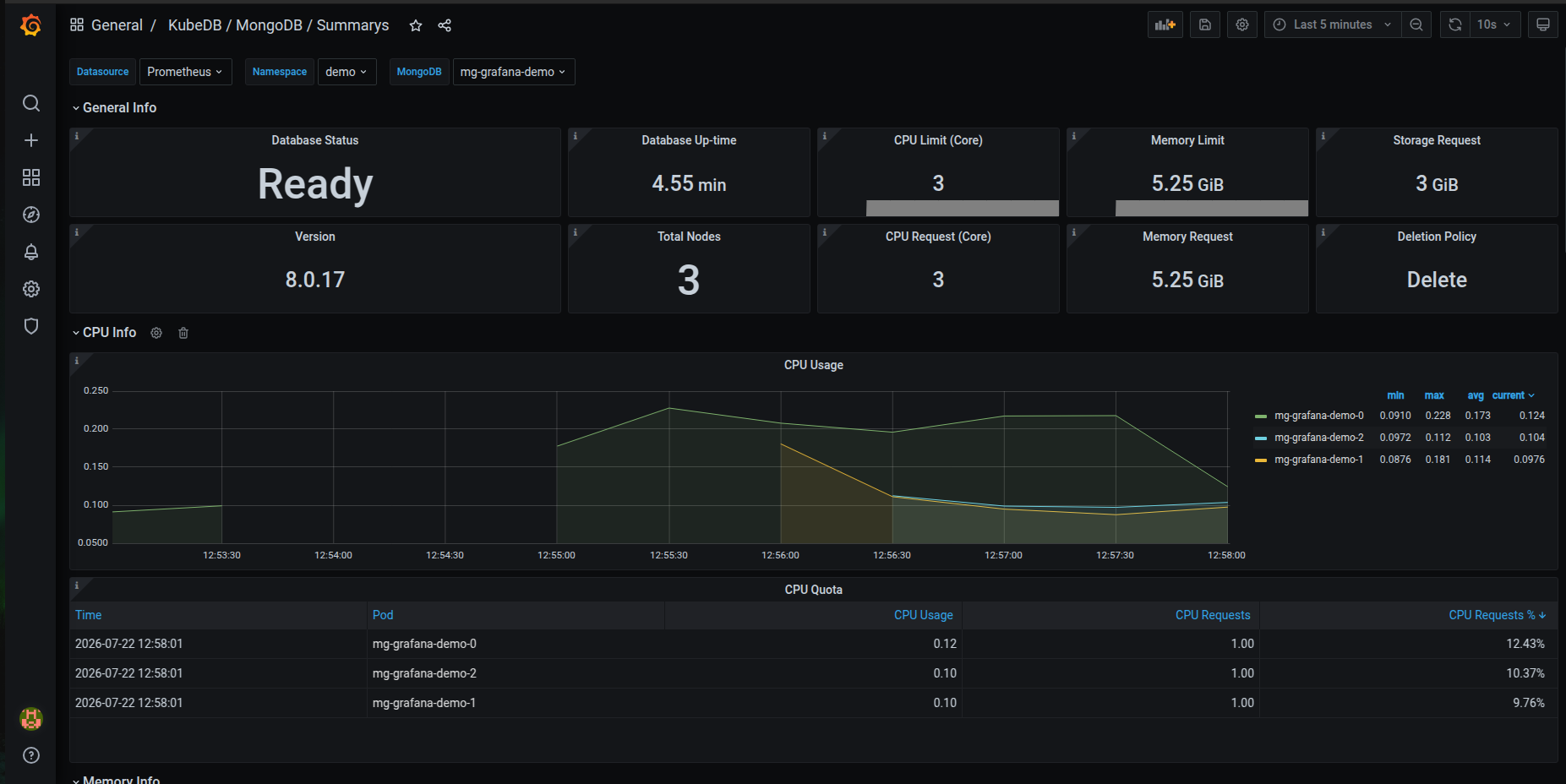

KubeDB / MongoDB / Summary — start here for an instance overview:

• General Info — database status, up-time, version, total nodes, deletion policy
• Resource Requests / Limits — configured CPU, memory, and storage requests and limits
• CPU Info / CPU Quota — CPU usage over time and per-pod quota utilization
• Memory Info — memory usage over time and per-pod quota utilization

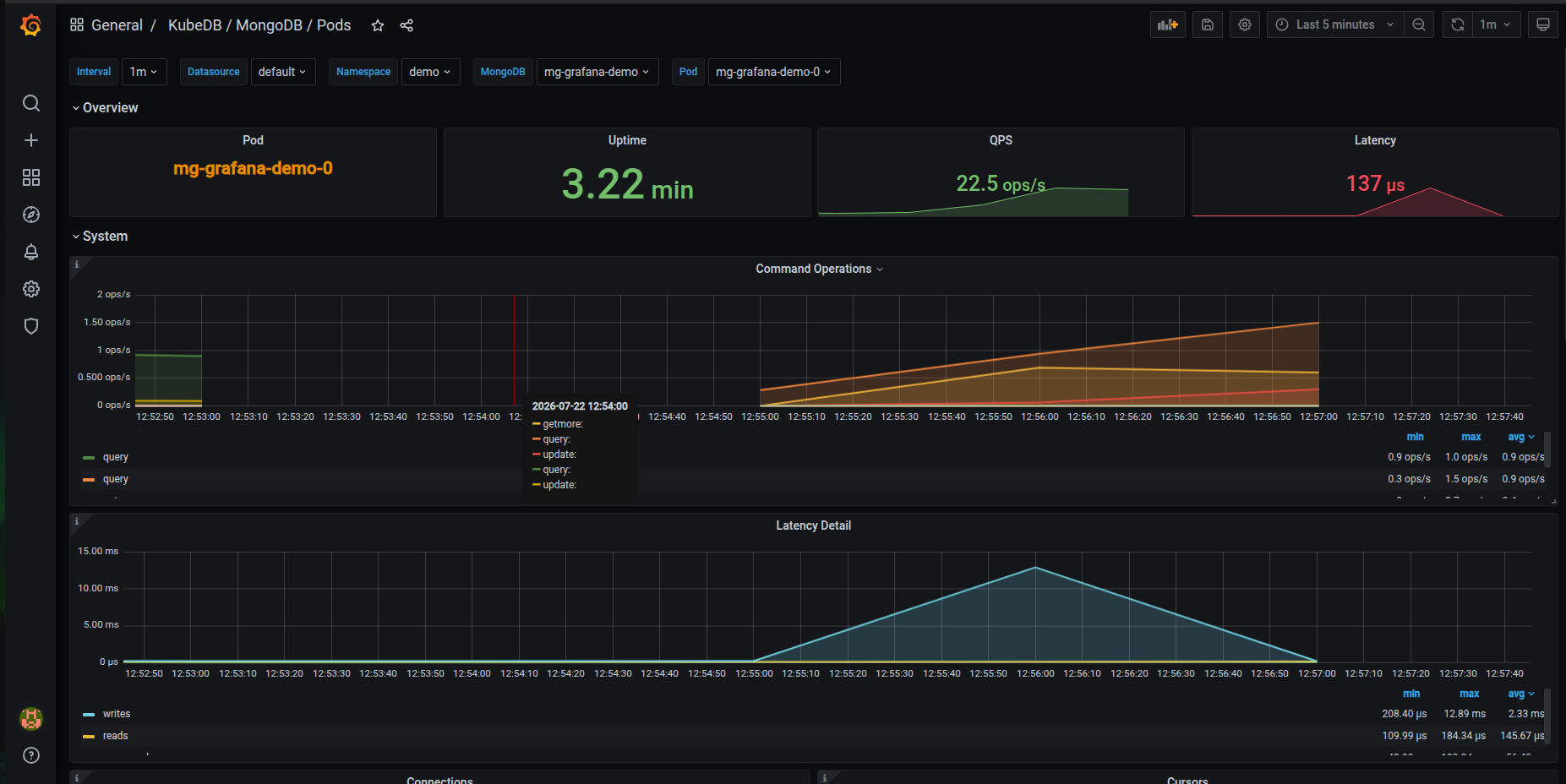

KubeDB / MongoDB / Pod — drill into a specific pod:

• Overview — pod name, uptime, QPS, latency
• Command Operations — query/update operation rate
• Latency Detail — read and write latency
• Connections / Cursors — active connections and open cursors on this pod

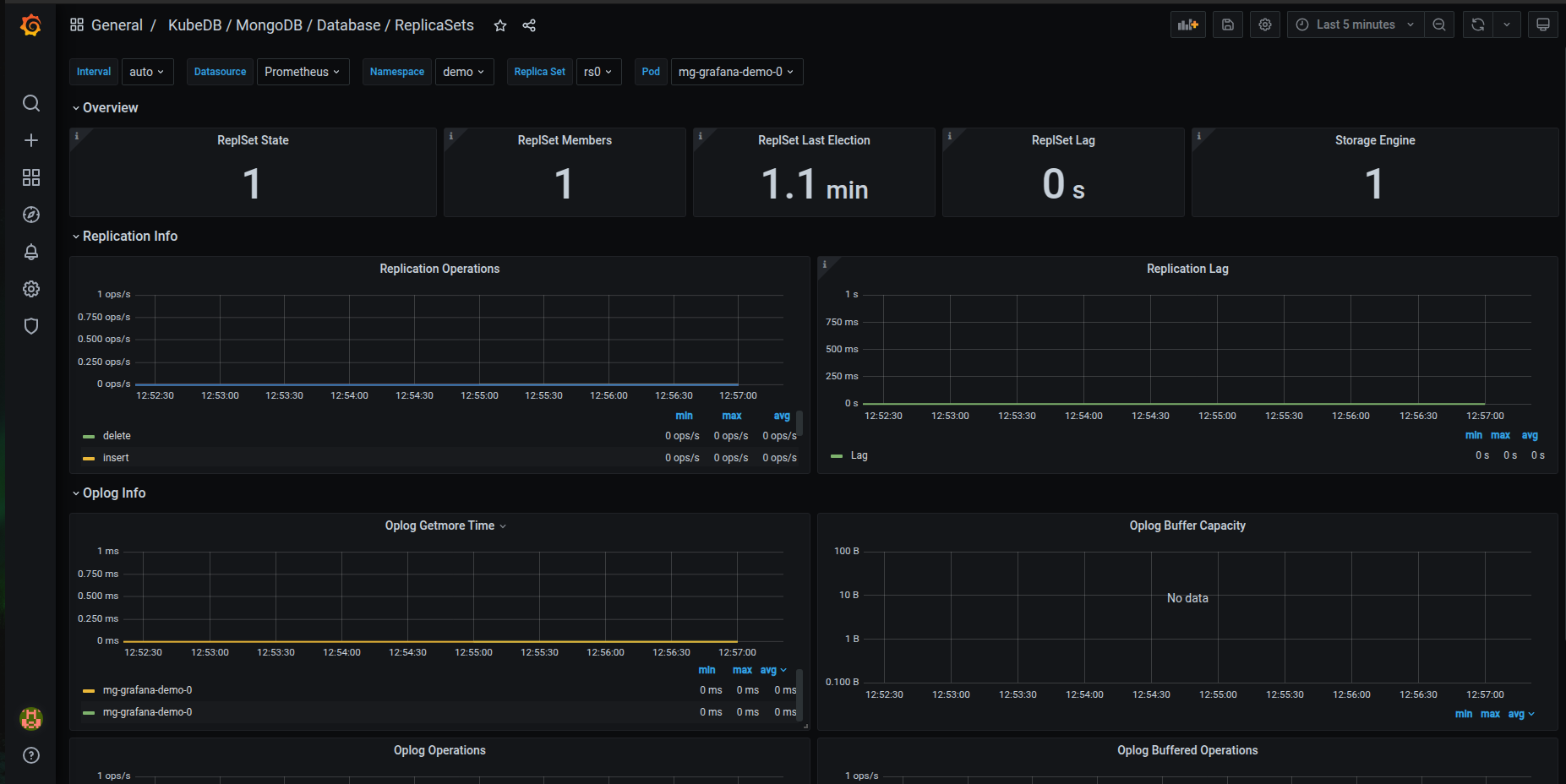

KubeDB / MongoDB / Database (ReplicaSet) — replication health:

• Overview — replica set state, member count, time since last election, replication lag, storage engine
• Replication Info — replication operations (insert/delete) and replication lag over time
• Oplog Info — oplog getmore time, oplog buffer capacity, oplog operations, buffered operations
