Visualize Qdrant Metrics with Grafana Dashboard

KubeDB exposes Qdrant metrics through its built-in Prometheus endpoint. Once Prometheus scrapes those metrics, you can visualize them in Grafana using pre-built KubeDB dashboards. This tutorial walks through the full setup: deploying the monitoring stack, enabling monitoring on a Qdrant instance, and importing the Grafana dashboards.

Before You Begin

  • You need a Kubernetes cluster with kubectl configured. If you do not already have a cluster, you can create one by using kind.

  • KubeDB must be installed in your cluster with kubedb-metrics enabled. Follow the setup guide here and make sure to include the flag below during installation:

    --set kubedb-metrics.enabled=true

    kubedb-metrics creates MetricsConfiguration objects for each database type, which Panopticon (Step 2) uses to expose metrics to Prometheus.

  • To keep monitoring resources isolated, we use a separate monitoring namespace and deploy the database in the demo namespace.

    $ kubectl create ns monitoring
namespace/monitoring created

$ kubectl create ns demo
namespace/demo created

Note: YAML files used in this tutorial are stored in docs/examples/qdrant/monitoring folder in GitHub repository kubedb/docs.

Configuration

These two steps — deploying kube-prometheus-stack and installing Panopticon — are shared prerequisites for all KubeDB database monitoring guides. If you have already completed them in another guide, skip to Step 1.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector label that Prometheus uses to pick up ServiceMonitor objects. You will need this label when enabling monitoring on the Qdrant instance.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

The label is release: prometheus.

Step 2: Install Panopticon

Panopticon is the Appscode operator that reads MetricsConfiguration objects created by kubedb-metrics and exposes them to Prometheus. It must be installed before enabling kubedb-metrics.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Setup

Step 1: Deploy Qdrant with Monitoring Enabled

Below is the Qdrant object with monitoring configured to use Prometheus Operator. Qdrant exposes metrics natively on port 6333 so no separate exporter sidecar is needed.

apiVersion: kubedb.com/v1alpha2
kind: Qdrant
metadata:
  name: qdrant-grafana-demo
  namespace: demo
spec:
  version: "1.17.0"
  deletionPolicy: WipeOut
  storage:
    storageClassName: "standard"
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      exporter:
        port: 6333
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

  • monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor for this instance.
  • monitor.prometheus.exporter.port: 6333 points the scrape target at Qdrant’s native metrics endpoint.
  • monitor.prometheus.serviceMonitor.labels must match the serviceMonitorSelector label of your Prometheus (release: prometheus).

Create the Qdrant instance:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/qdrant/monitoring/qdrant-grafana-demo.yaml
qdrant.kubedb.com/qdrant-grafana-demo created

Wait for it to be Ready:

$ kubectl get qdrant -n demo qdrant-grafana-demo
NAME                  VERSION   STATUS   AGE
qdrant-grafana-demo   1.17.0    Ready    2m

KubeDB creates a stats service named {qdrant-name}-stats for the exporter:

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=qdrant-grafana-demo"
NAME                       TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)    AGE
qdrant-grafana-demo        ClusterIP   10.96.10.1    <none>        6333/TCP   2m
qdrant-grafana-demo-stats  ClusterIP   10.96.10.2    <none>        6333/TCP   2m

KubeDB also creates a ServiceMonitor in the demo namespace:

$ kubectl get servicemonitor -n demo
NAME                       AGE
qdrant-grafana-demo-stats  2m

Verify it carries the correct label:

$ kubectl get servicemonitor -n demo qdrant-grafana-demo-stats -o jsonpath='{.metadata.labels}'
{"release":"prometheus", ...}

Step 2: Verify Prometheus is Scraping

Port-forward the Prometheus pod:

$ kubectl port-forward -n monitoring \
  prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090

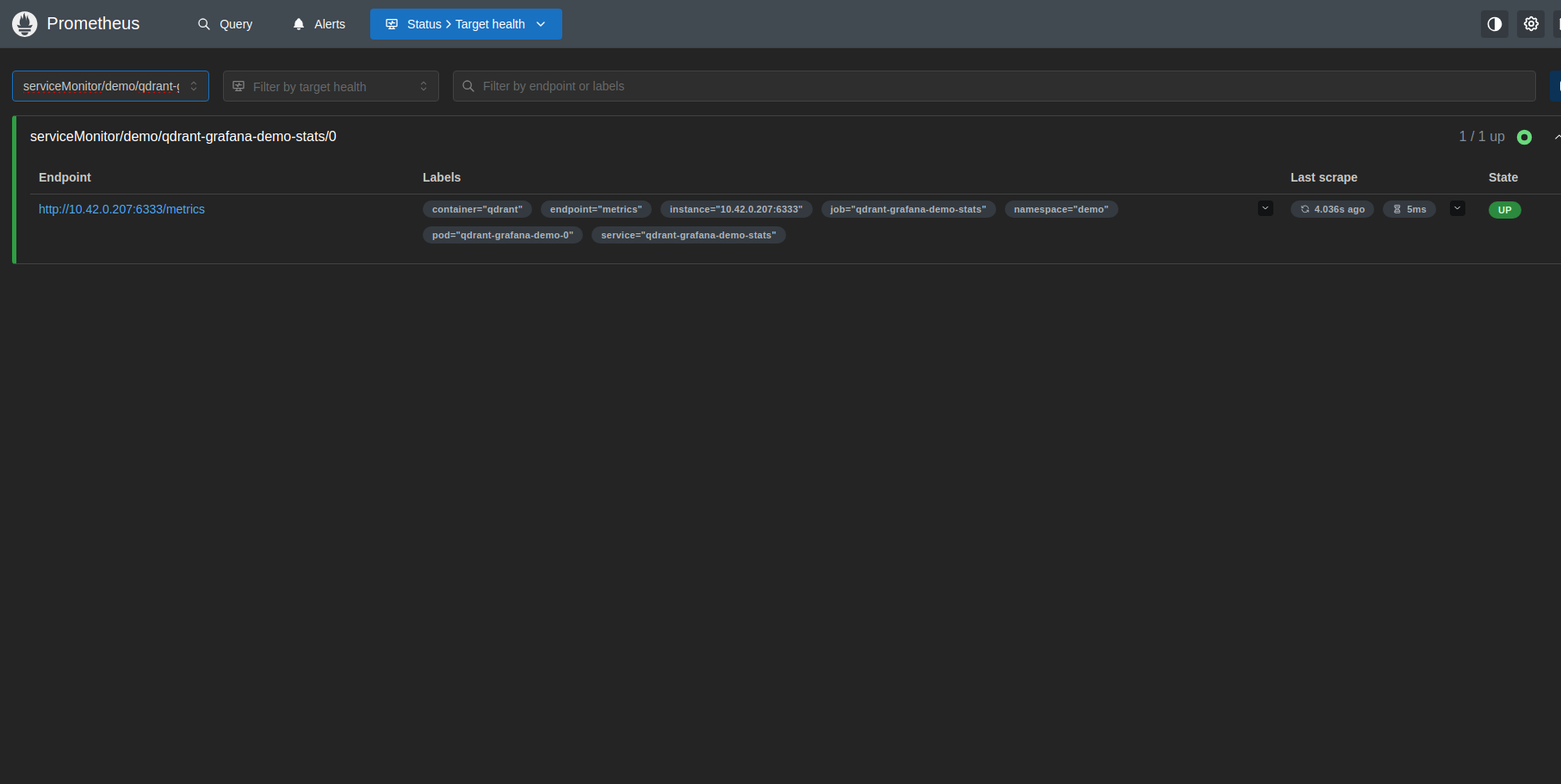

Open http://localhost:9090/targets in your browser. Select the serviceMonitor/demo/qdrant-grafana-demo-stats/0 pool from the dropdown. The target at http://<pod-ip>:6333/metrics should show state UP.

Prometheus Target

If the target is missing, check that the ServiceMonitor label (release: prometheus) matches the Prometheus serviceMonitorSelector.

Step 3: Access Grafana

Port-forward the Grafana service:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80
Forwarding from 127.0.0.1:3000 -> 80

Open http://localhost:3000. The username is admin. Retrieve the auto-generated password from the secret:

$ kubectl get secret -n monitoring prometheus-grafana \
  -o jsonpath='{.data.admin-password}' | base64 -d
FieldValue
Usernameadmin
Passwordoutput of the command above

Step 4: Configure Prometheus as a Data Source

If you installed Grafana via kube-prometheus-stack, Prometheus is already configured as the default data source — skip to Step 5.

For a standalone Grafana installation:

  1. Go to Connections → Data sources → Add new data source.

  2. Select Prometheus.

  3. Set the URL to your Prometheus service:

    http://prometheus-operated.monitoring.svc:9090

  4. Click Save & test. You should see Data source is working.

Step 5: Import KubeDB Qdrant Dashboards

The KubeDB Qdrant dashboards are distributed as JSON files. Each JSON file is a complete dashboard definition — panels, queries, variables, and layout — that Grafana loads in one shot. Without importing, you would have to build every panel and write every PromQL query by hand. Importing lets you skip that entirely.

Three dashboards are available. Download all three JSON files from the appscode/grafana-dashboards repository (qdrant/ folder):

FileDashboard
qdrant_summary_dashboard.jsonKubeDB / Qdrant / Summary
qdrant_pods_dashboard.jsonKubeDB / Qdrant / Pod
qdrant_databases_dashboard.jsonKubeDB / Qdrant / Database

Import steps (repeat for each of the three files):

  1. In Grafana, click Dashboards in the left sidebar.
  2. Select Import from the menu.
  3. Click Upload dashboard JSON file and select one of the downloaded .json files.
  4. In the Prometheus dropdown that appears, select your Prometheus data source.
  5. Click Import.

After importing all three files, they will appear under Dashboards in the left sidebar.

Step 6: Explore the Dashboards

After opening a dashboard, use the dropdown filters at the top to focus on a specific instance.

VariableApplies toWhat to select
namespaceAll dashboardsNamespace where your Qdrant is deployed (e.g., demo)
appAll dashboardsName of your instance (e.g., qdrant-grafana-demo)
podPod dashboardA specific pod, or All for an aggregated view

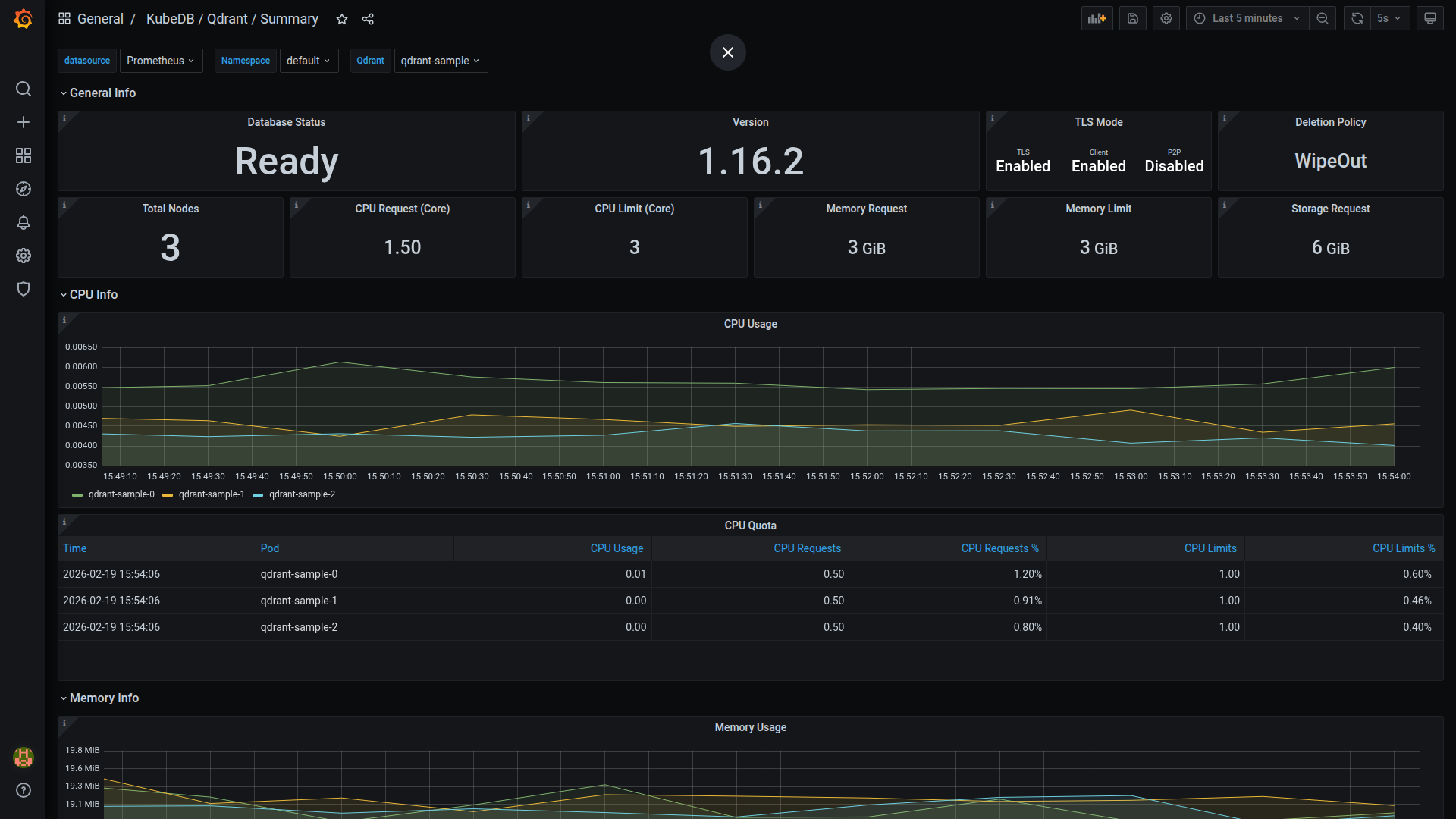

KubeDB / Qdrant / Summary — instance-level overview:

General Info section:

  • Database Status — current health of the Qdrant instance
  • Version — Qdrant version running
  • TLS Mode — TLS, Client, and P2P encryption status
  • Deletion Policy — KubeDB deletion policy (e.g., WipeOut)
  • Total Nodes — number of active member pods
  • CPU Request / CPU Limit — configured CPU bounds per pod (in cores)
  • Memory Request / Memory Limit — configured memory bounds per pod
  • Storage Request — configured storage request per pod

CPU Info section:

  • CPU Usage — per-pod CPU consumption over time
  • CPU Quota — table of CPU requests, limits, and usage percentages per pod

KubeDB Qdrant Summary Dashboard

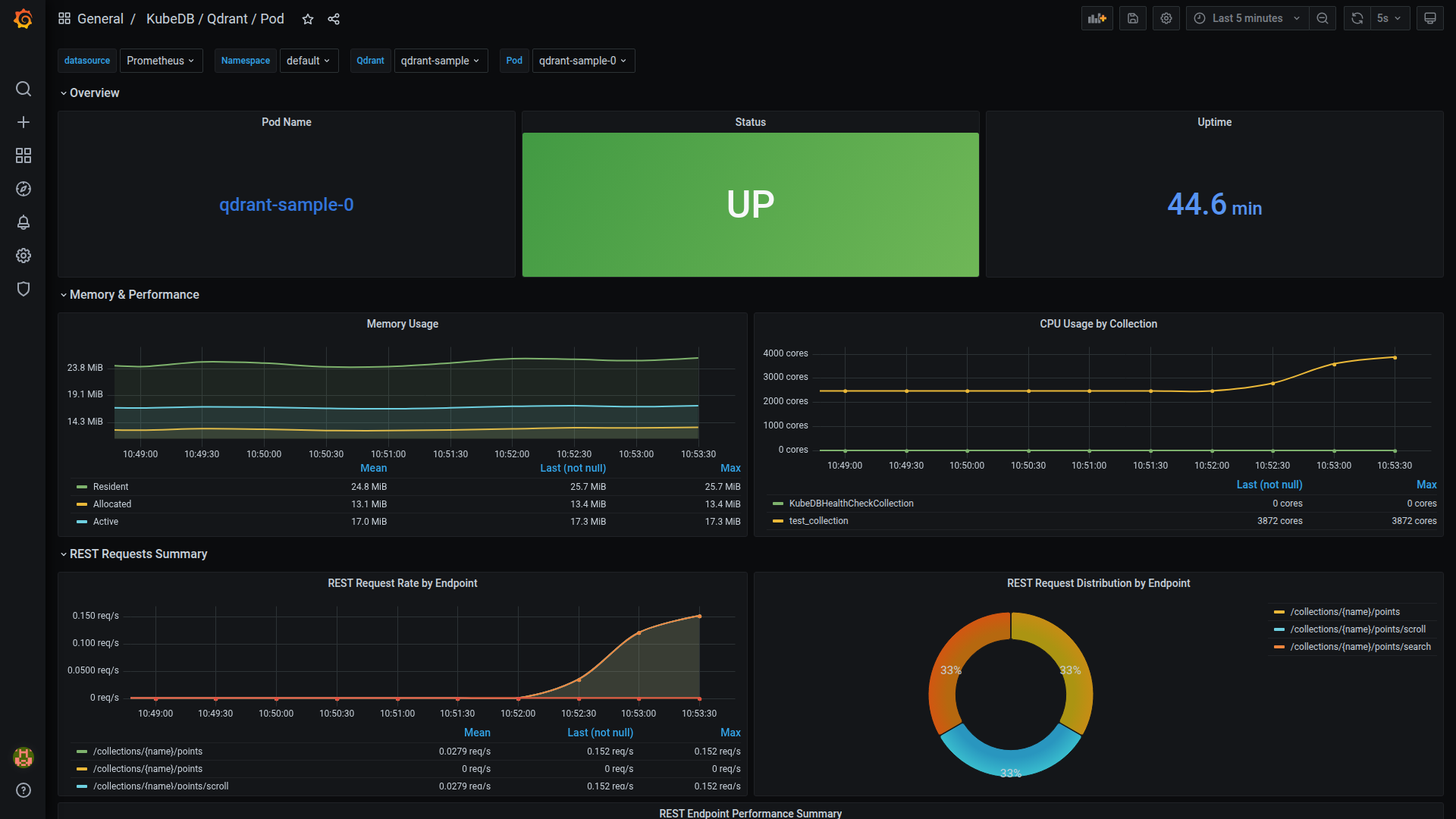

KubeDB / Qdrant / Pod — per-pod drill-down. Use the Pod dropdown to select a specific qdrant-grafana-demo-N pod.

Overview section:

  • Pod Name — name of the selected pod
  • Status — current health status of the selected pod
  • Uptime — how long this pod has been running

Memory & Performance section:

  • Memory Usage — RSS memory consumed by this pod over time
  • CPU Usage by Collection — CPU usage broken down by Qdrant collection on this pod

REST Requests Summary section:

  • REST Request Rate by Endpoint — per-endpoint request throughput over time
  • REST Request Distribution by Endpoint — breakdown of request share per endpoint
  • REST Endpoint Performance Summary — latency and throughput breakdown per REST endpoint

KubeDB Qdrant Pod Dashboard

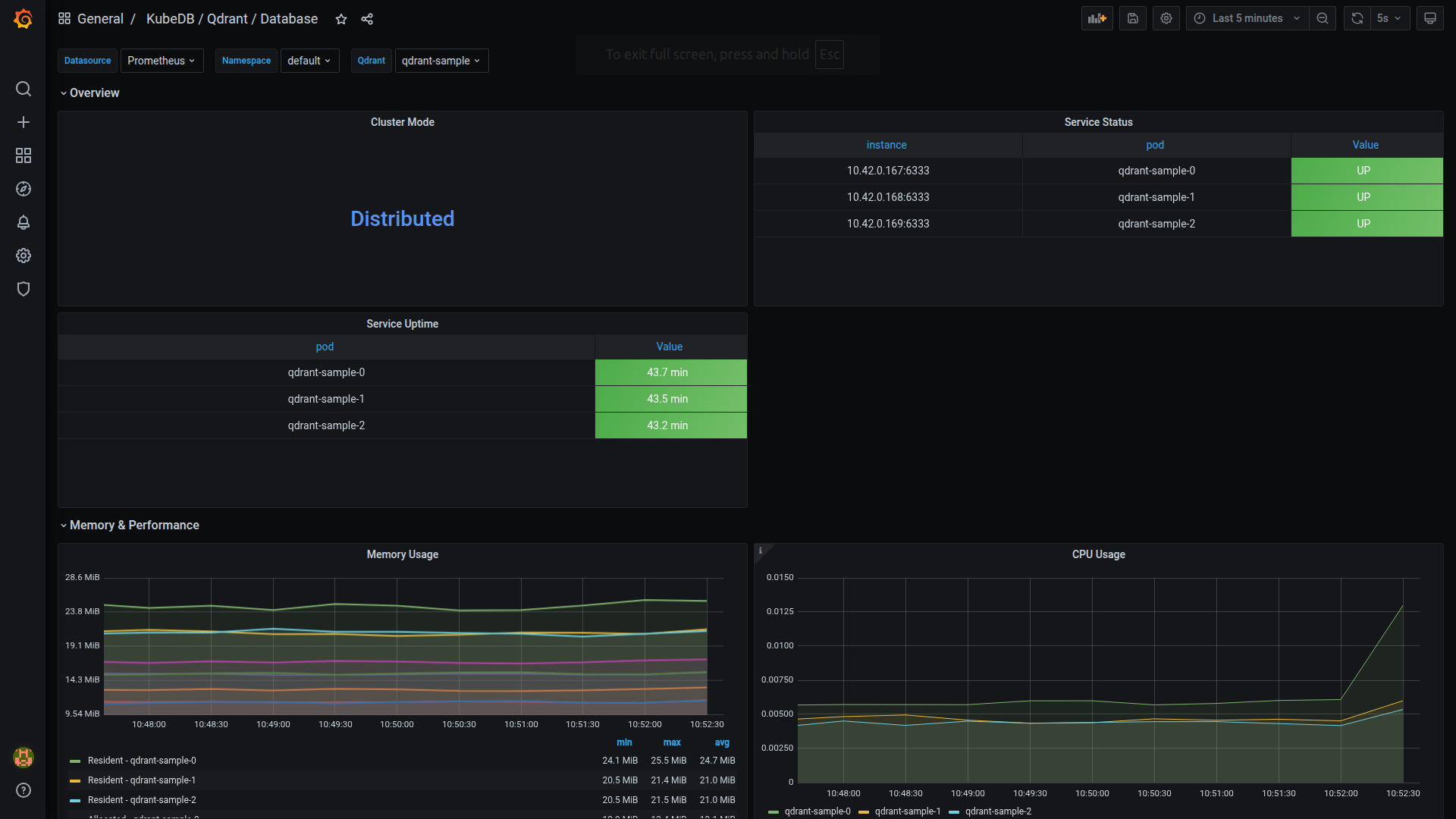

KubeDB / Qdrant / Database — cluster-wide service and performance view:

Overview section:

  • Cluster Mode — whether Qdrant is running in standalone or distributed mode
  • Service Status — overall service health
  • Service Uptime — total uptime of the Qdrant service

Memory & Performance section:

  • Memory Usage — total memory consumed across the cluster over time
  • CPU Usage — total CPU consumption across the cluster over time

KubeDB Qdrant Database Dashboard

Cleaning up

# Remove the Qdrant instance
kubectl delete qdrant -n demo qdrant-grafana-demo

# Remove namespaces
kubectl delete ns demo

# Uninstall monitoring stack (optional)
helm uninstall prometheus -n monitoring
helm uninstall panopticon -n kubeops
kubectl delete ns monitoring kubeops
